I soldered my cpu directly to the PCB and snipped off the pins underneath. It fits under the keyboard with clearance now in my zombie 500+. It's in the way of one of the RF shield tabs though.
Running at 40 MHz. Waiting for 100 MHz oscillators to get here to get to 50 MHz.
My first TF536
Moderators: terriblefire, Terriblefire Moderator
-
Lynxman
- Posts: 180
- Joined: 24 Nov 2019 20:09
My first TF536
You do not have the required permissions to view the files attached to this post.
-
Mark Sealey
- Posts: 57
- Joined: 09 Nov 2019 22:19
-
Lynxman
- Posts: 180
- Joined: 24 Nov 2019 20:09
Re: My first TF536
The TF536 has better compatibility with WHDLoad games than the TF534. All the games I couldn't get working before now work. Zeewolf 1 and 2, Joungle Strike 2MB version, F18 Interceptor would crash with TF534.
-
PaulJ_2.0
- Posts: 571
- Joined: 11 May 2019 23:32
Re: My first TF536
What's the deal with the two RTC?
Nice build BTW
Nice build BTW
-
supaduper
- Site sponsor

- Posts: 664
- Joined: 08 Nov 2018 12:05
Re: My first TF536
I`ll answer , some A500 ram expansions had RTCs because only the A500+ had an RTC the first A500 did not
-
Lynxman
- Posts: 180
- Joined: 24 Nov 2019 20:09
Re: My first TF536
Yes. I originally built that red RAM expansion for my A500, and when I got this A500+ I moved it over the the A500+ because it has room for another ram chip to give 1 MB extra chip ram. I then put another old school expansion that only could have 512 kB in my old A500. I omitted the motherboard battery because of the clock on the ram board and it seems to work fine. It's more practical to have battery access from the expansion bay anyway.
-
Lynxman
- Posts: 180
- Joined: 24 Nov 2019 20:09
Re: My first TF536

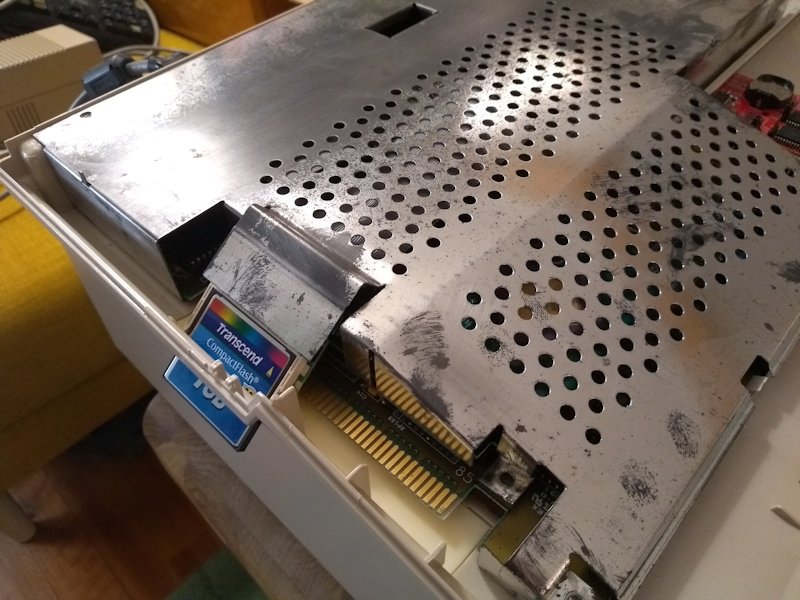

I cut the corner of the TF536 so that the RF shield will fit. There's a capacitor on the bottom that prevented me from cutting further in but it fits after bending the leg on the shield slightly. I could move the cap over to the leg of the chip but this will do. Stephen if you want to make it so that it doesn't nee a relocator that's all it takes. If the 68000 socket headers were moved down to the edge it would alsowork and the CPU could probably be fitted with a socket as it would sit farter in.
I also cut slots in the shield to give room for my expansion door CF holder. Almost looks factory. You can download my 3D printable expansion doors here: https://www.exxosforum.co.uk/forum/viewt ... 297#p56297
I also cut slots in the shield to give room for my expansion door CF holder. Almost looks factory. You can download my 3D printable expansion doors here: https://www.exxosforum.co.uk/forum/viewt ... 297#p56297
You do not have the required permissions to view the files attached to this post.
-
8 Bit Dreams
- Moderator Team

- Posts: 785
- Joined: 09 Nov 2018 07:12
- Location: Germany
Re: My first TF536
Wow! Hopefully You was prepared to see fireworks on power on, since these are four-layer boards. Cutting them may short out GND and VCC inner layers.. :shock:
Retro computer hardware & repair in Germany
-
go0se
- Posts: 411
- Joined: 25 Nov 2018 19:55
Re: My first TF536
Where's your sense of adventure?? :lol:8 Bit Dreams wrote: 21 Jan 2021 20:20 Wow! Hopefully You was prepared to see fireworks on power on, since these are four-layer boards. Cutting them may short out GND and VCC inner layers.. :shock:
