Replacing a missing pin on a PLCC IC

[dml]

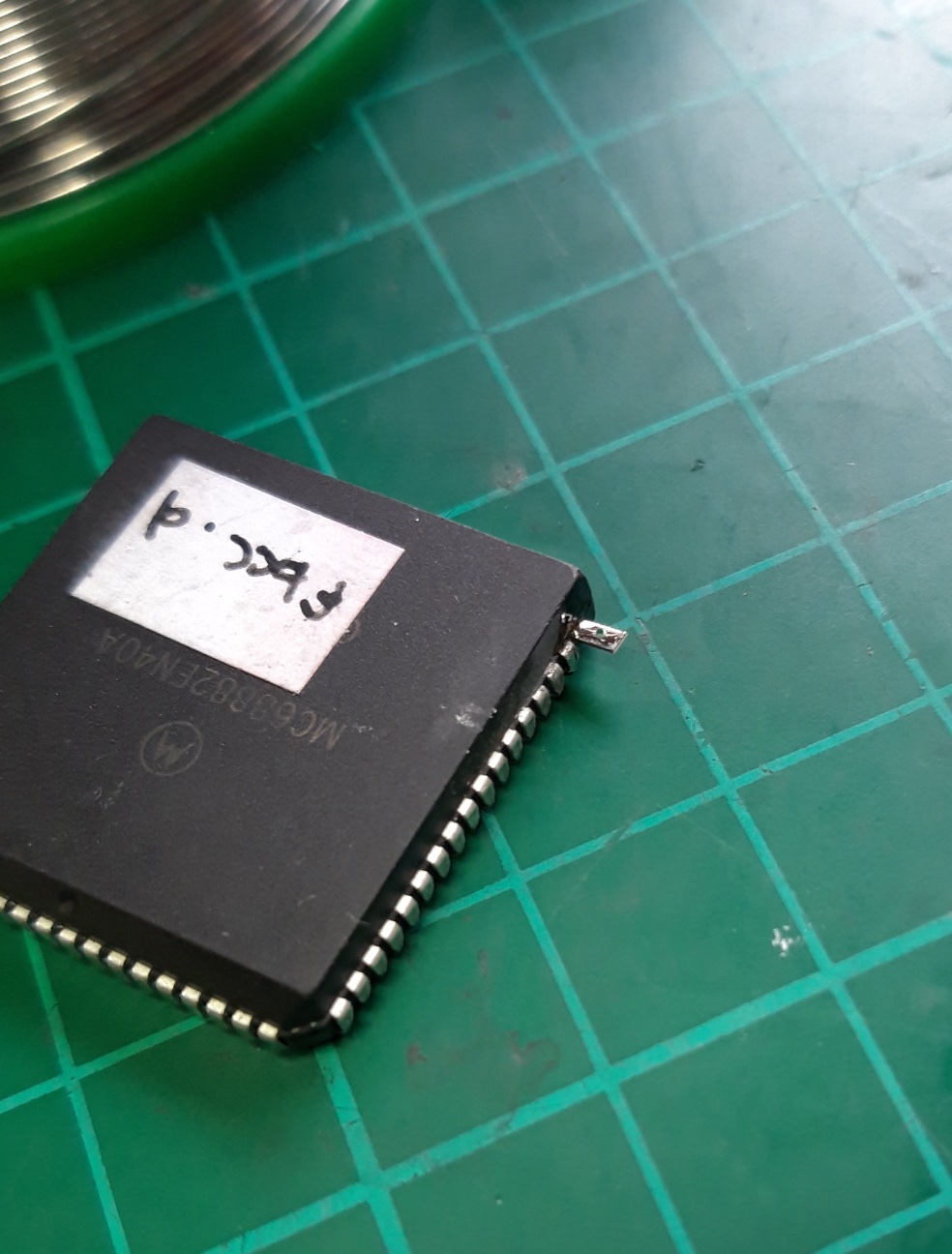

So in an unrelated PLCC drama (see earlier post), I lost a pin from this FPU.


I would normally throw this in the 'dead parts' bin - but this one has an interesting bug which helps me verify my FPU testing tool. So it would be nice to hang onto it.

I decided to try replacing the missing pin. This isn't super easy because the pin broke off flush with the package. It will involve some drilling. I opted to drill from the underside because it will be easier to support the new pin from behind with an epoxy filler.

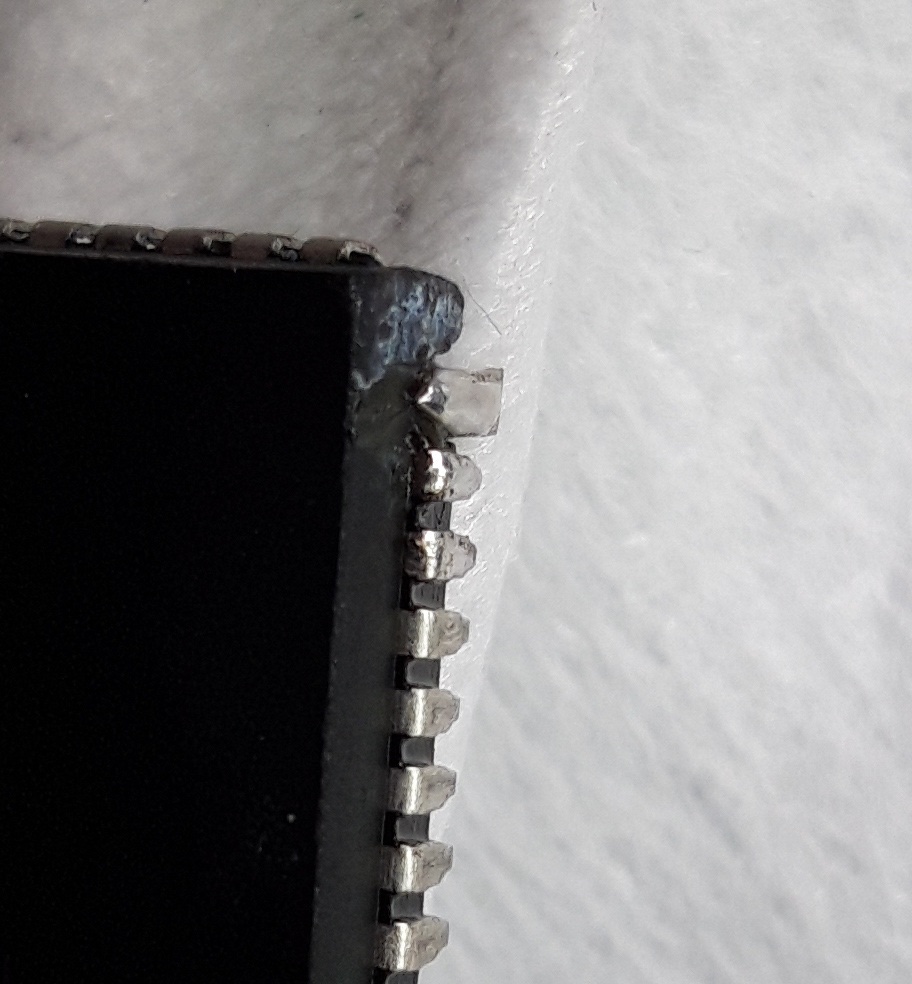

To replace the old pin, I picked the leg of a potentiometer. It's definitely a bit wider than the original but it's also not flimsy, which should help. I can always dremel the sides of the pin later to make it thinner.






Finally, some epoxy filled in the cavity behind the pin.


I'm not recommending this as a thing to do - just posting for entertainment purposes. Unless you don't have any other option, better just throw it away and save the socket :D

[rubber_jonnie]

I've done similar before, definitely worth a go if the IC is known good.

[russellnash]

That is quite a sophisticated repair, well done.
