Hi!
I'm wiring up in a 110V configuration Exxo's new PSU and I cant find a guide when using the original 4 pin switch, and i cant seem to find (pref) a link for the new SPST switch, any ideas?
TIA!
110v PSU with old 4pin switch?
-
RetroPassionUK
- Posts: 32
- Joined: Mon May 17, 2021 9:30 pm
- Location: Birchington - Kent
- Contact:
Re: 110v PSU with old 4pin switch?
RetroPassionUK wrote: Sat Sep 24, 2022 3:03 pm i cant seem to find (pref) a link for the new SPST switch, any ideas?
viewtopic.php?f=9&t=1511
-
RetroPassionUK
- Posts: 32
- Joined: Mon May 17, 2021 9:30 pm
- Location: Birchington - Kent
- Contact:
Re: 110v PSU with old 4pin switch?
Hi thanks i found this but it shows the 2 pin switch (New) and not the original atari 4 pin switch? have I missed something?exxos wrote: Sat Sep 24, 2022 3:09 pmRetroPassionUK wrote: Sat Sep 24, 2022 3:03 pm i cant seem to find (pref) a link for the new SPST switch, any ideas?
viewtopic.php?f=9&t=1511
Re: 110v PSU with old 4pin switch?
Sorry thought that was what you was asking for.
I don't think there is a guide. But instead of wiring one PSU wire direct to the switch, you route it via the switch also.
I don't think there is a guide. But instead of wiring one PSU wire direct to the switch, you route it via the switch also.
Re: 110v PSU with old 4pin switch?

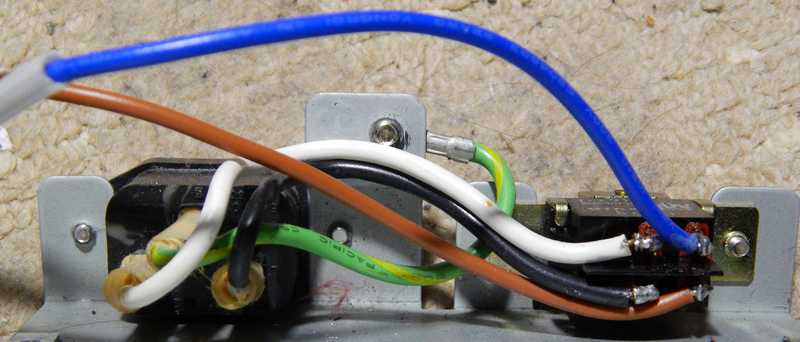

Like this https://www.exxosforum.co.uk/atari/last ... switch.jpg
Except you will have parallel wires going to the switch for 110v.
Except you will have parallel wires going to the switch for 110v.
-
RetroPassionUK
- Posts: 32
- Joined: Mon May 17, 2021 9:30 pm
- Location: Birchington - Kent
- Contact:
Re: 110v PSU with old 4pin switch?
Thank you and all done!!exxos wrote: Sat Sep 24, 2022 3:39 pm Like this https://www.exxosforum.co.uk/atari/last ... switch.jpg
Except you will have parallel wires going to the switch for 110v.
Re: 110v PSU with old 4pin switch?
Could you take a image of the wiring so I can add it to the 110v page ? Would help others in the future
