EXXOS's new C1 build

[exxos]

Onwards..



[exxos]

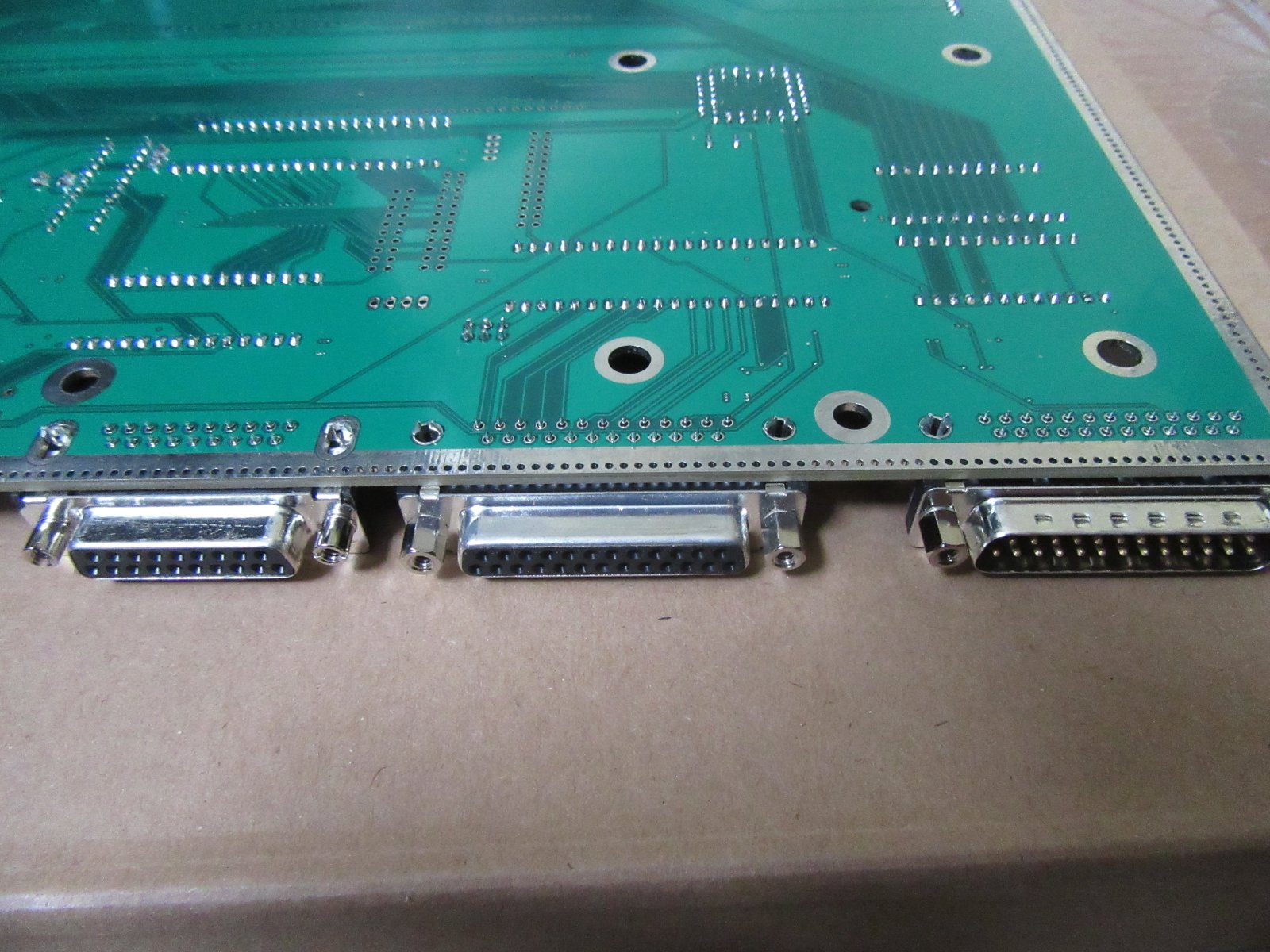

Poking the connectors through making sure no bent pins. Then soldering.







[exxos]

Simm socket next.



[exxos]

2 pin header for the DUALTOS ROM.



[exxos]

RTC not being used here. So blob the 2 pins.



[exxos]

OSC fitted.



[exxos]

Salvaging parts from a scrap board.


[exxos]

A few chips in place and cartridge port soldered in.



[exxos]

Correct resistors fitted.



[exxos]

Keyboard jumper done and keyway cut.
