List of all TF cards.
TF520 (2016) - 020 @ 20Mhz. (A500) (Open Source)
TF530 (2016) - 030 + FPU @ 50Mhz + 2Mb RAM. (A500) (Open Source)
TF328 (2017) - 8Mb RAM + IDE (CD32) (Open Source)
TF534 (2017) - 030 + FPU @ 50Mhz + 4Mb RAM. (A500) (Open Source)
TF330 (2018) - 030 @ 50Mhz + 64Mb (CD32) (Open Source)
TF360 (2018) - 060 @ 50Mhz + 128Mb (CD32)
TF536 (2019) - 030 @ 50Mhz + 64Mb (A500)
TF1260 (2019) - 060 @ 50Mhz + 128Mb (A1200)
TF Riser (2020) - CD32 USB Riser. (Open Source)
TF4060 (2020) - 060 @ 100Mhz + 256Mb (A4000/A3000)
TF1230 (2020) - 030 @ 50Mhz + 128Mb
TFMSX (2021) - Standalone MSeX Machine (Planned to be Open Source)
TF1200 (2021) - Buffee Adaptor + 5.5Mb/8Mb (Planned to be Open Source)
Phew. Dont ask for any more features.
Perhaps we can get a photo of each of the above in this thread.
EDIT: Reason for this thread is to demonstrate that I really dont need more boards to support.
REMINDER - Stay logged in for at least 2 hours a week to get whitelisted.
Also it helps build a picture where our "good traffic" is coming from for detection scripts.
:o)
Also it helps build a picture where our "good traffic" is coming from for detection scripts.
:o)
TF Cards... All of them
Moderators: terriblefire, Terriblefire Moderator
-
terriblefire
- Admin sponsor
- Posts: 5687
- Joined: 28 Aug 2017 22:56
- Location: Glasgow, UK
TF Cards... All of them
———
"It is not necessarily a supply voltage at no load, but the amount of current it can provide when touched that
indicates how much hurting you shall receive."
"It is not necessarily a supply voltage at no load, but the amount of current it can provide when touched that
indicates how much hurting you shall receive."
-
supaduper
- Site sponsor
- Posts: 664
- Joined: 08 Nov 2018 12:05
Re: TF Cards... All of them

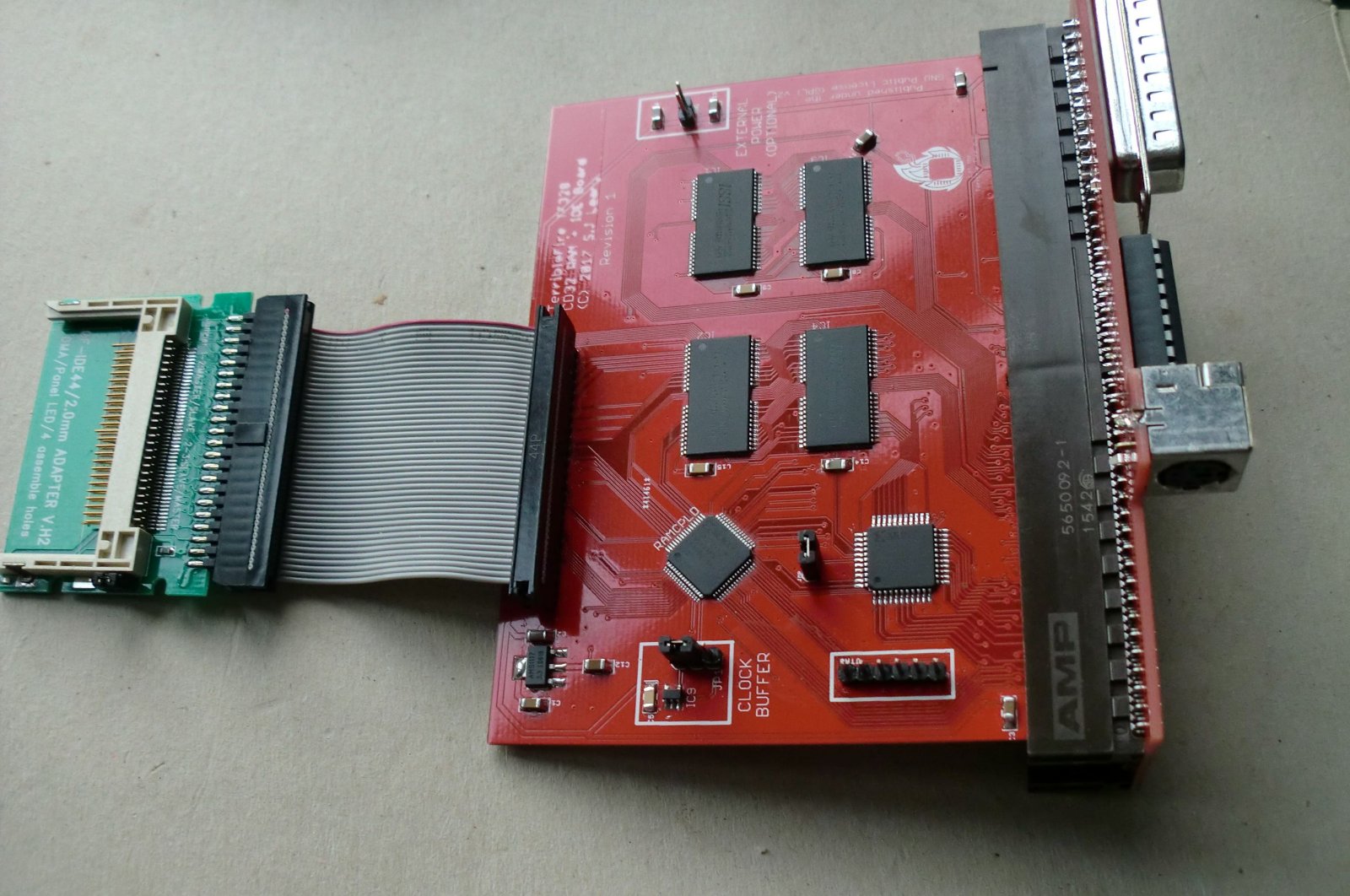

TF328
TF330
TF360
TF1260 ( Green Edition )
TF330
TF360
TF1260 ( Green Edition )
You do not have the required permissions to view the files attached to this post.
-
dalek
- Posts: 232
- Joined: 08 Nov 2018 11:03
- Location: NSW Australia
Re: TF Cards... All of them
And many have multiple revisions!
-
terriblefire
- Admin sponsor
- Posts: 5687
- Joined: 28 Aug 2017 22:56
- Location: Glasgow, UK
Re: TF Cards... All of them
TF4060
You do not have the required permissions to view the files attached to this post.
———
"It is not necessarily a supply voltage at no load, but the amount of current it can provide when touched that
indicates how much hurting you shall receive."
"It is not necessarily a supply voltage at no load, but the amount of current it can provide when touched that
indicates how much hurting you shall receive."
-
dalek
- Posts: 232
- Joined: 08 Nov 2018 11:03
- Location: NSW Australia
Re: TF Cards... All of them
Would love this pcb one day hint hint :hide:
-
terriblefire
- Admin sponsor
- Posts: 5687
- Joined: 28 Aug 2017 22:56
- Location: Glasgow, UK
Re: TF Cards... All of them
I would love to get time to work on it.... :( :cry:
———
"It is not necessarily a supply voltage at no load, but the amount of current it can provide when touched that
indicates how much hurting you shall receive."
"It is not necessarily a supply voltage at no load, but the amount of current it can provide when touched that
indicates how much hurting you shall receive."
-
arkadiusz.makarenko
- Moderator Team
- Posts: 1371
- Joined: 19 Jun 2019 07:36
- Location: Edinburgh
Re: TF Cards... All of them
CD32 TF Riser
You do not have the required permissions to view the files attached to this post.
Do not trust people. They are capable of greatness.
~ Stanislaw Lem
~ Stanislaw Lem
-
go0se
- Posts: 411
- Joined: 25 Nov 2018 19:55
Re: TF Cards... All of them
TF530 The first TF foray into 030 for the DIP64?
TF534 ( The last great TF card - with FPU :lol: )
TF536 R1 ( The best TF536, before he bowed to pressure and put those IDE buffers on there and and ruined the aesthetic... :D
TF536 R2b - The most controversial TF card to date, caused an international incident...
All Front

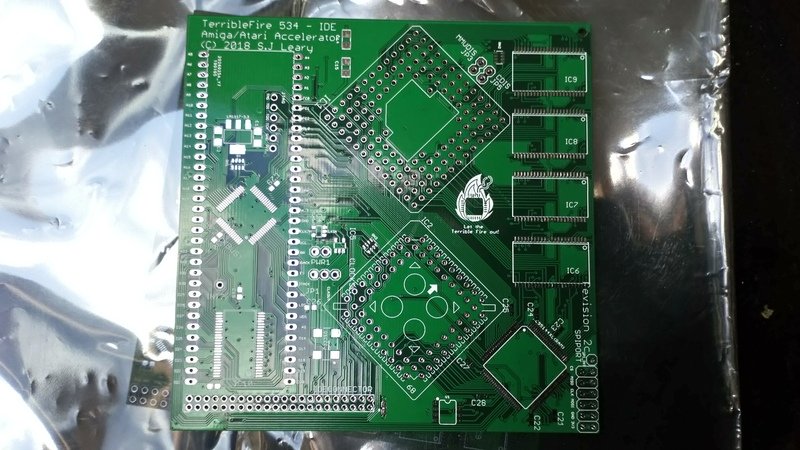

!! Special rare collectors Item !! Unpopulated TF534 With the TF logo! ( mostly found in museums or art galleries )
TF534 ( The last great TF card - with FPU :lol: )
TF536 R1 ( The best TF536, before he bowed to pressure and put those IDE buffers on there and and ruined the aesthetic... :D
TF536 R2b - The most controversial TF card to date, caused an international incident...
All Front
!! Special rare collectors Item !! Unpopulated TF534 With the TF logo! ( mostly found in museums or art galleries )
You do not have the required permissions to view the files attached to this post.
-
DoG
- Posts: 1299
- Joined: 07 Apr 2018 12:26
Re: TF Cards... All of them
Unpopulated TF520 Rev3
You do not have the required permissions to view the files attached to this post.
-
SnoopDOS
- Posts: 7
- Joined: 11 Aug 2019 10:41
Re: TF Cards... All of them
Looking forwards to this one for sure!
