Does anyone have any part numbers, datasheets, mechanical drawings, or anything like that, for any of the 14-pin DIN connectors used for our floppy drives? Plugs, sockets, or anything?
I'm looking to get some dimensions and spacing for the pins and plug itself to build some new adapters, and I'd much rather look at documents than measure everything with calipers.
Floppy 14-pin DIN Info
-
exxos
- Site Admin
- Posts: 28388
- Joined: 16 Aug 2017 23:19
- Location: UK
Re: Floppy 14-pin DIN Info
Have a look here for some stuff.. https://www.exxosforum.co.uk/forum/viewf ... 262620ac04
-
DominoTree
- Posts: 107
- Joined: 25 Sep 2020 02:47
Re: Floppy 14-pin DIN Info
Thanks - immediately found exactly what I'm looking for!exxos wrote: 09 Dec 2020 18:08 Have a look here for some stuff.. https://www.exxosforum.co.uk/forum/viewf ... 262620ac04
-
DominoTree
- Posts: 107
- Joined: 25 Sep 2020 02:47
Re: Floppy 14-pin DIN Info

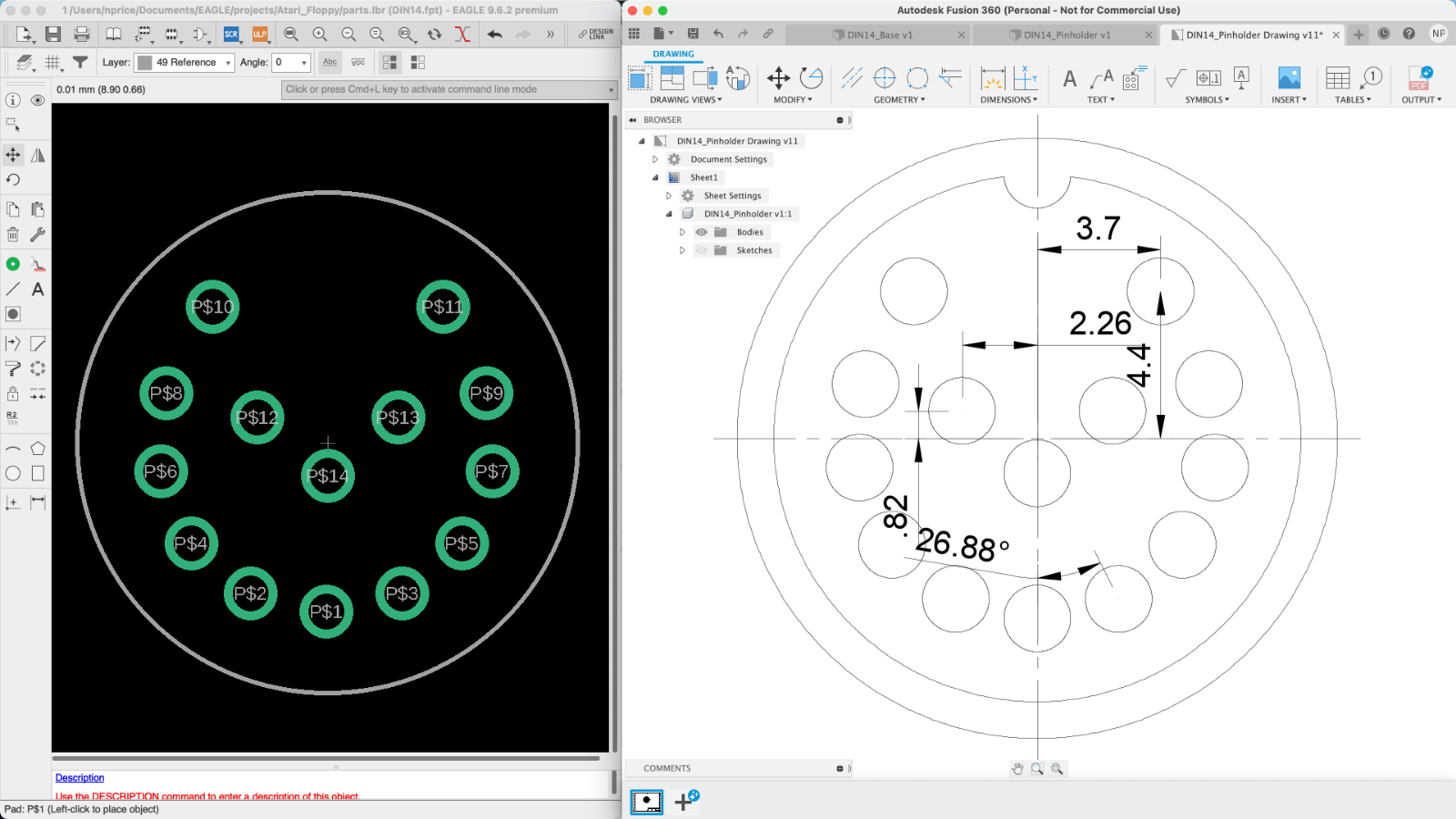

Wasn't too bad :D
You do not have the required permissions to view the files attached to this post.
-
tzok
- Posts: 338
- Joined: 30 Dec 2017 14:27
Re: Floppy 14-pin DIN Info
My drawings are from "the nature", the dimensions are not super precise, especially the angles.
-
DominoTree
- Posts: 107
- Joined: 25 Sep 2020 02:47
Re: Floppy 14-pin DIN Info
Thanks for them either way! I've printed out the EAGLE footprint and it seems to line up well, I'm about to order some boards to test with - hopefully it's "close enough"tzok wrote: 10 Dec 2020 15:47 My drawings are from "the nature", the dimensions are not super precise, especially the angles.
-
tzok
- Posts: 338
- Joined: 30 Dec 2017 14:27
Re: Floppy 14-pin DIN Info
I've printed some of these plugs, and they fit perfectly ok.
