H2C SCHEMATIC 19-07-2019

Related information and WIP etc
User avatar
exxos
Site Admin
Site Admin
Posts: 28093
Joined: 16 Aug 2017 23:19
Location: UK

H2C SCHEMATIC 19-07-2019

Post by exxos »

Once upon a time.. there was a motherboard.. and it grew a bit...

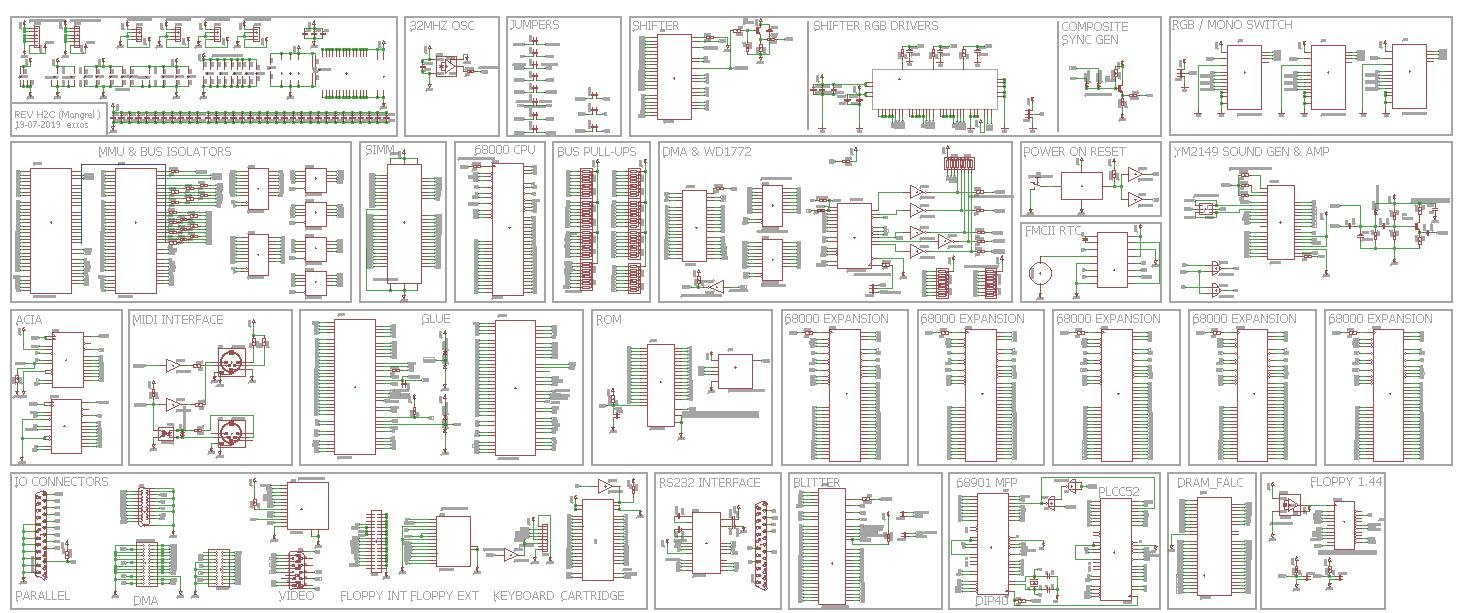

600 DPI SCH
h2c.zip
You do not have the required permissions to view the files attached to this post.
Top
User avatar
exxos
Site Admin
Site Admin
Posts: 28093
Joined: 16 Aug 2017 23:19
Location: UK

Re: H2C SCHEMATIC 19-07-2019

Post by exxos »

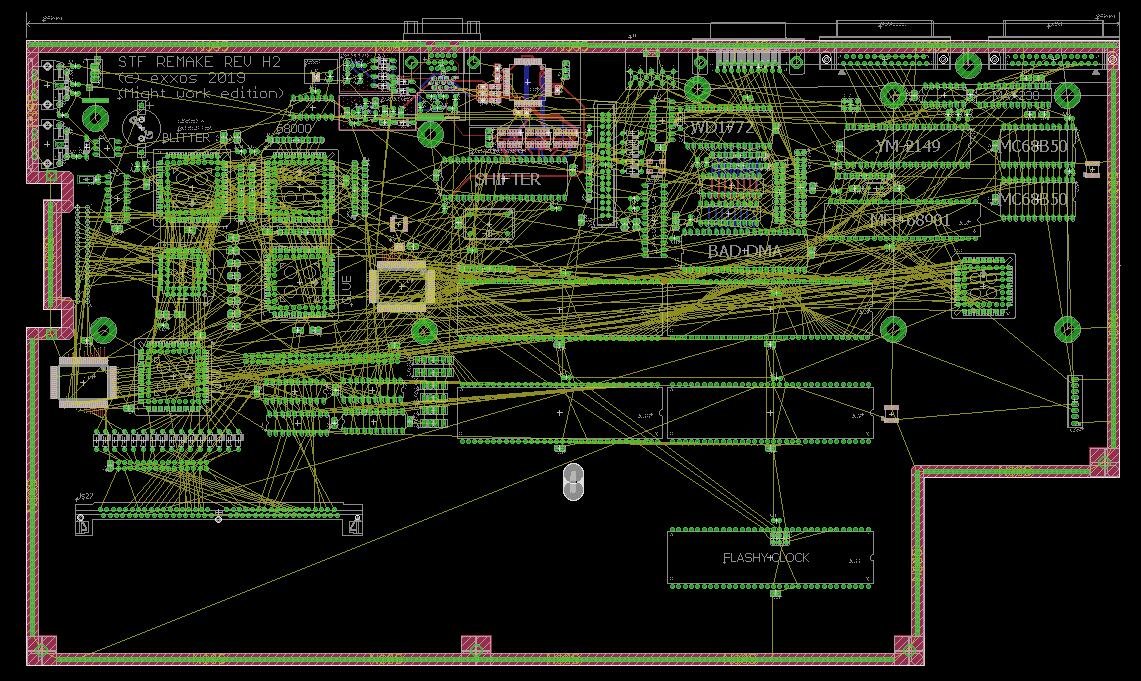

Preview of the PCB...

You do not have the required permissions to view the files attached to this post.
Top
User avatar
Icky
Site Admin
Site Admin
Posts: 4311
Joined: 03 Sep 2017 10:57
Location: UK

Re: H2C SCHEMATIC 19-07-2019

Post by Icky »

:coolpics:

Looking good Exxos
Top
User avatar
exxos
Site Admin
Site Admin
Posts: 28093
Joined: 16 Aug 2017 23:19
Location: UK

Re: H2C SCHEMATIC 19-07-2019

Post by exxos »

This is the parts list dump ...

H2C.txt

I guess it needs correlating to just list the number of 1uF caps etc rather than a huge list of everything.
You do not have the required permissions to view the files attached to this post.
Top
User avatar
Icky
Site Admin
Site Admin
Posts: 4311
Joined: 03 Sep 2017 10:57
Location: UK

Re: H2C SCHEMATIC 19-07-2019

Post by Icky »

Now here is the "Where's Wally" challenge.

Can anyone spot the additional feature Exxos has added to the board? I've seen it :)
Top
User avatar
PhilC
Moderator
Moderator
Posts: 7370
Joined: 23 Mar 2018 20:22

Re: H2C SCHEMATIC 19-07-2019

Post by PhilC »

Icky wrote: 22 Jul 2019 14:22 Now here is the "Where's Wally" challenge.

Can anyone spot the additional feature Exxos has added to the board? I've seen it :)
Now that depends on your point of reference but no doubt something flashy will have been added as well as other things :D
If it ain't broke, test it to Destruction.
Top
User avatar
exxos
Site Admin
Site Admin
Posts: 28093
Joined: 16 Aug 2017 23:19
Location: UK

Re: H2C SCHEMATIC 19-07-2019

Post by exxos »

PhilC wrote: 22 Jul 2019 14:37
Icky wrote: 22 Jul 2019 14:22 Now here is the "Where's Wally" challenge.

Can anyone spot the additional feature Exxos has added to the board? I've seen it :)
Now that depends on your point of reference but no doubt something flashy will have been added as well as other things :D
Its been there months, very subtle change, but people actually requested it ages ago.. nobody noticed yet :)
Top
User avatar
JezC
Posts: 2768
Joined: 28 Aug 2017 23:44

Re: H2C SCHEMATIC 19-07-2019

Post by JezC »

Not the SIMM as well as the Falcon DRAM?

Never any good at these things, so probably way off... :roll:
Top
User avatar
exxos
Site Admin
Site Admin
Posts: 28093
Joined: 16 Aug 2017 23:19
Location: UK

Re: H2C SCHEMATIC 19-07-2019

Post by exxos »

JezC wrote: 22 Jul 2019 15:12 Not the SIMM as well as the Falcon DRAM?

Never any good at these things, so probably way off... :roll:
Yeah, stone cold there buddy.
Top
User avatar
Icky
Site Admin
Site Admin
Posts: 4311
Joined: 03 Sep 2017 10:57
Location: UK

Re: H2C SCHEMATIC 19-07-2019

Post by Icky »

exxos wrote: 22 Jul 2019 15:27
JezC wrote: 22 Jul 2019 15:12 Not the SIMM as well as the Falcon DRAM?

Never any good at these things, so probably way off... :roll:
Yeah, stone cold there buddy.
Still no more suggestions as to what it is. It's pretty big on the board you cant really miss it :)
Top
