dmaf2 dma disk controller.

Post by PaulJ »

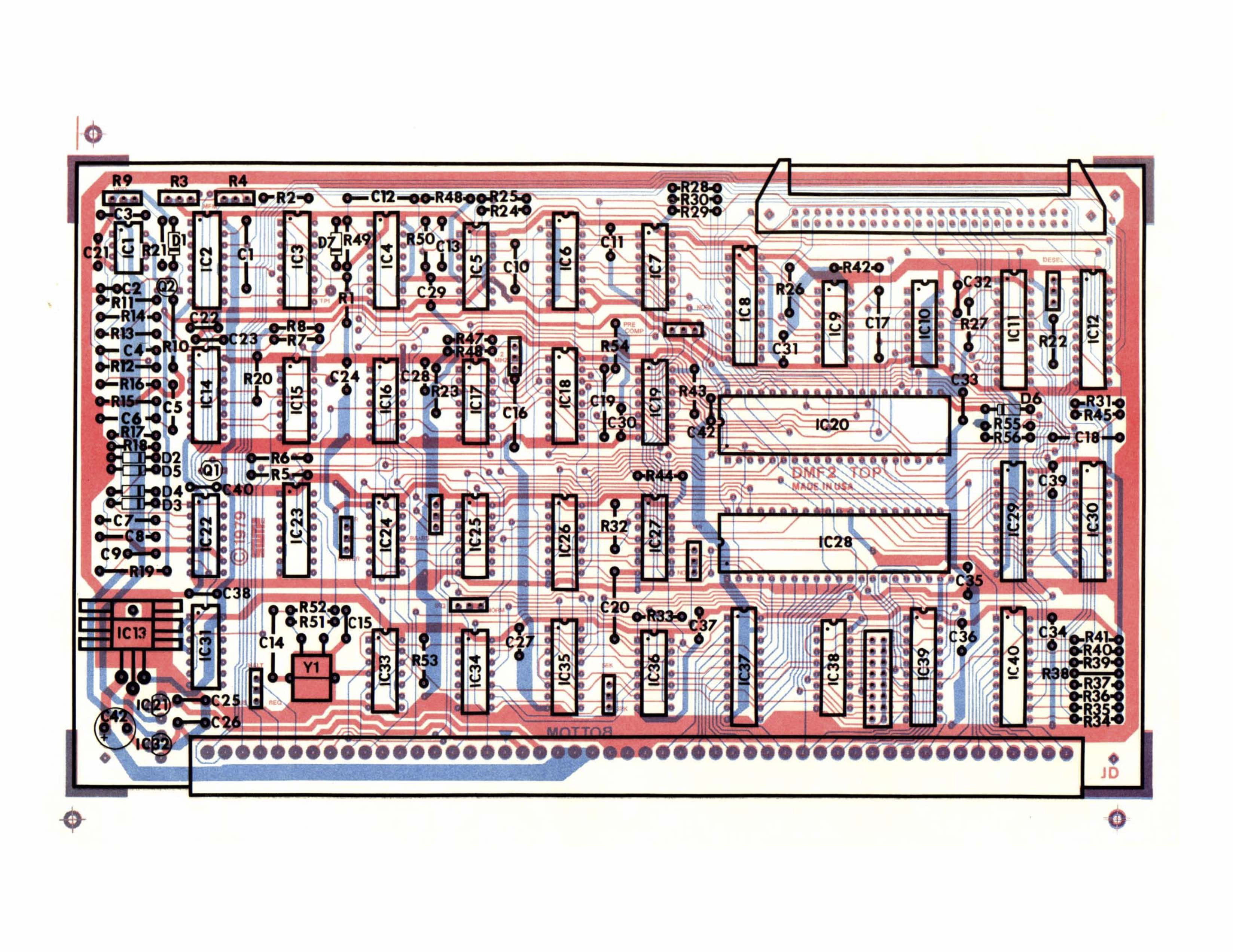

Well now that exxos has put up the eagle tutorials and I gain some expertise I'll be able to build the dmaf2 dma disk controller.
The only controller that could run 8" floppy drives with a 2 mhz 6809 computer. I just so happened to pick up these drives for a trade on some old isa cards.
Top
User avatar
exxos
Site Admin
Site Admin
Posts: 28845
Joined: Wed Aug 16, 2017 11:19 pm
Location: UK
Contact:
Contact exxos

Re: dmaf2 dma disk controller.

Post by exxos »

Keep you busy for a bit ;)
Top
User avatar
PaulJ
Posts: 1568
Joined: Sun Apr 08, 2018 1:14 am
Location: USA

Re: dmaf2 dma disk controller.

Post by PaulJ »

Yes, I believe it will. :) :) :)
