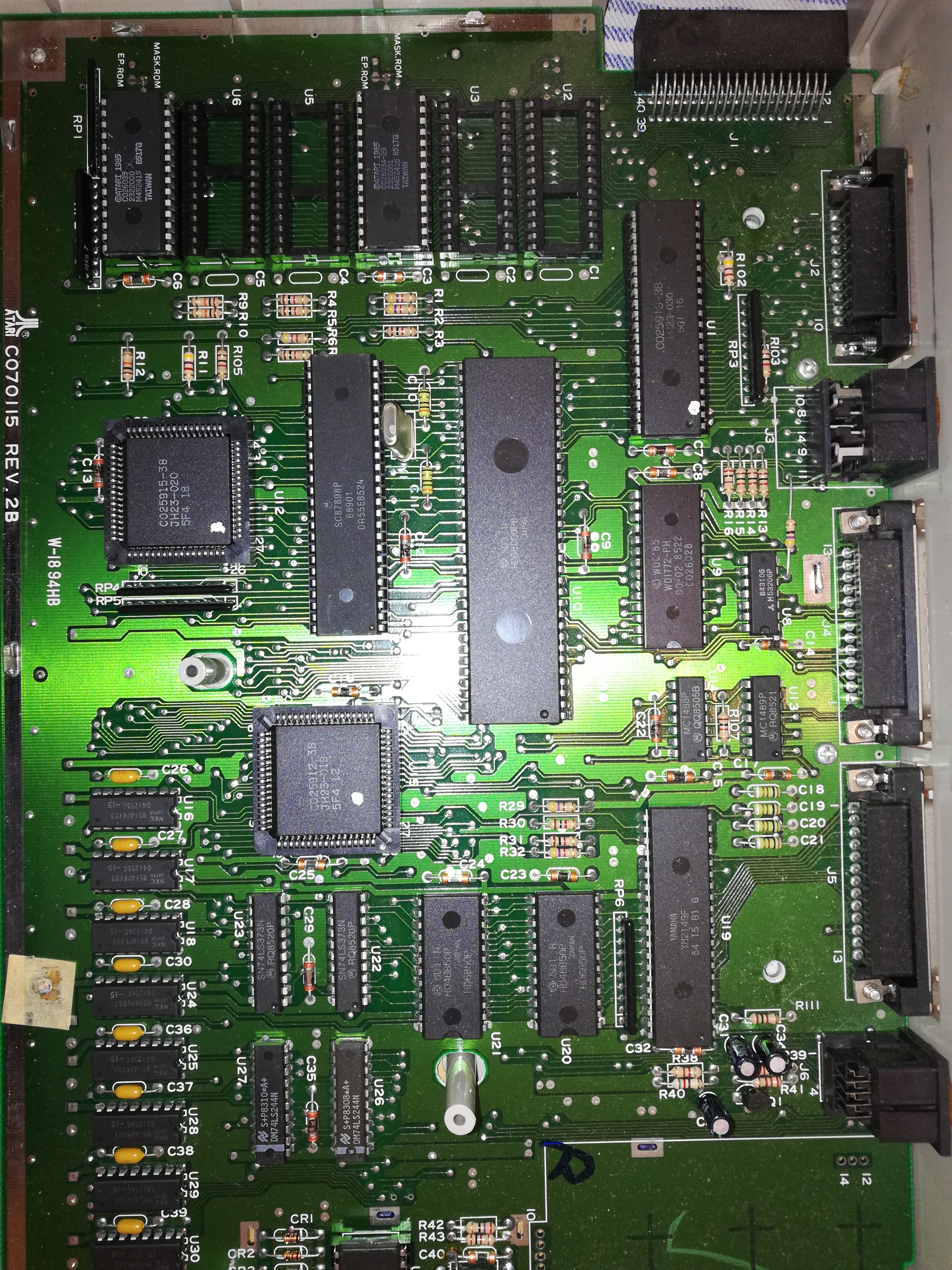

C070115 REV.2B (520ST 08/1985)
C070115 REV.2B (520ST 08/1985)

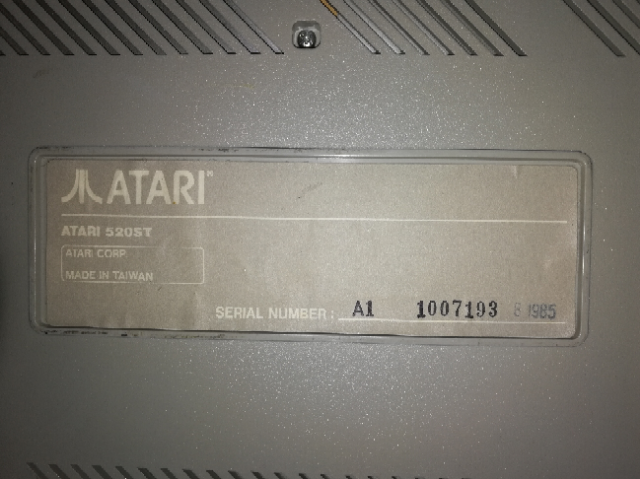

Atari 520 ST (AZERTY / French Keyboard) without TOS (08/1985)
Re: C070115 REV.2B (520ST 08/1985)

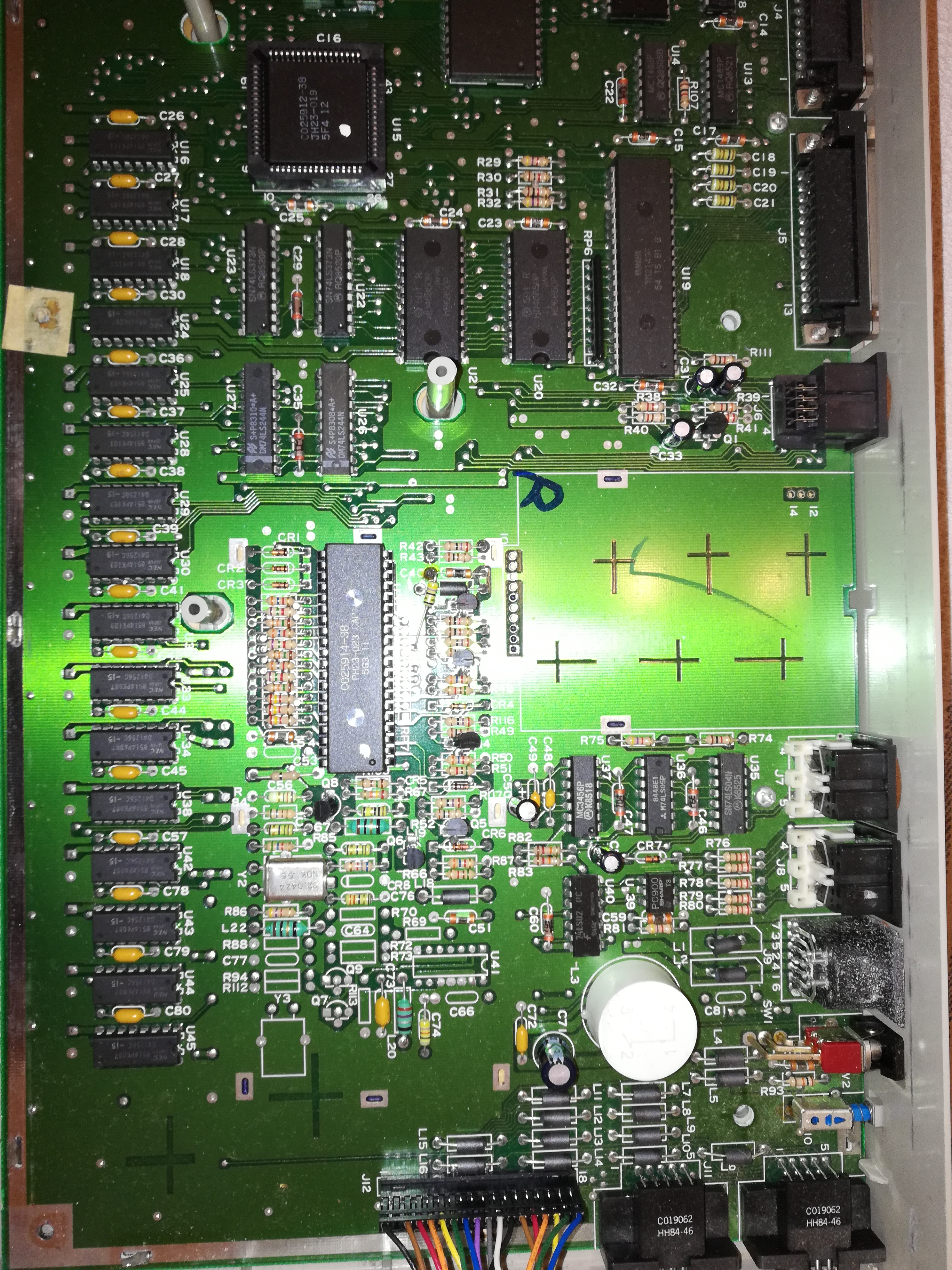

No vias for filters. Not sure I've seen that on any other ST motherboard revision before.
(Has there been a Shifter can on that at all? Seems to have the mounts but cleanly removed if so)
Chip revisions seems to be the same as on my REV.B - but this is surely an earlier revision since they added loads of filters in between those two versions. If I were to guess at the date stamp on the REV.B, it's 10 1985 so only two months difference.
(Has there been a Shifter can on that at all? Seems to have the mounts but cleanly removed if so)
Chip revisions seems to be the same as on my REV.B - but this is surely an earlier revision since they added loads of filters in between those two versions. If I were to guess at the date stamp on the REV.B, it's 10 1985 so only two months difference.
Re: C070115 REV.2B (520ST 08/1985)
Isn't the -38 the shifter the one you was on about ? (can't remember off-hand sorry)troed wrote: Sun Oct 28, 2018 10:31 pm No vias for filters. Not sure I've seen that on any other ST motherboard revision before.
Re: C070115 REV.2B (520ST 08/1985)
Yes - and my REV.B has one as wellexxos wrote: Sun Oct 28, 2018 10:40 pm Isn't the -38 the shifter the one you was on about ? (can't remember off-hand sorry)
This seems to be a revision from just before that one. Interesting that "2B" comes before "B".Re: C070115 REV.2B (520ST 08/1985)
This one doesn't have the CSYNC patch for non -M versions. Very interesting revision this
- Screen Shot 2018-10-28 at 23.46.13.png (607.6 KiB) Viewed 12168 times
Re: C070115 REV.2B (520ST 08/1985)
Maybe its one of the very early machines produced ?
Re: C070115 REV.2B (520ST 08/1985)
Yeah compare this motherboard with all the other ST(M) revisions posted on this board. Many many differences, not just the filters. Also the coil by the power connector. No "motherboard cap" near RAM etc.
duh: Scrap that about 2B before B - it's the only non-C070243 motherboard posted even!
Re: C070115 REV.2B (520ST 08/1985)
No, it does not have a composite sync.troed wrote: Sun Oct 28, 2018 10:43 pm This one doesn't have the CSYNC patch for non -M versions. Very interesting revision this
It works well with a monochrome monitor SM124 but not SCART with SC1425: the screen is out of sync.
I found an article of ST Magazine (in French) of October 1986 which speaks about it:
http://download.abandonware.org/magazin ... age046.JPG
