Should exxos design a new CT60 PSU?

[alexh]

44-pin IDE DOMs are typically SATA M.2 SSDs with integrated SATA->PATA adapter.

I take it back. I opened my two DOMs I have here. One has a hyperstone F9-ILAT06 PATA->Flash chip (never heard of them) and the other an SST 55LD019A both native PATA->Flash chipsets.

Learn something new every day.

[kohli79]

I have a DOM fitted and it accommodates very well with the CT60 PSU, so why not with yours ?

I thought everyone hated DOM modules as they failed easily ?

My CT63 Falcon also has a DOM fitted. I’ve never had any problems with it.
I bought it from him back then and ordered another one later on.

https://www.ebay.de/itm/304958780006

[exxos]

My CT63 Falcon also has a DOM fitted. I’ve never had any problems with it.
I bought it from him back then and ordered another one later on.

Thanks, I will take a look.

[exxos]

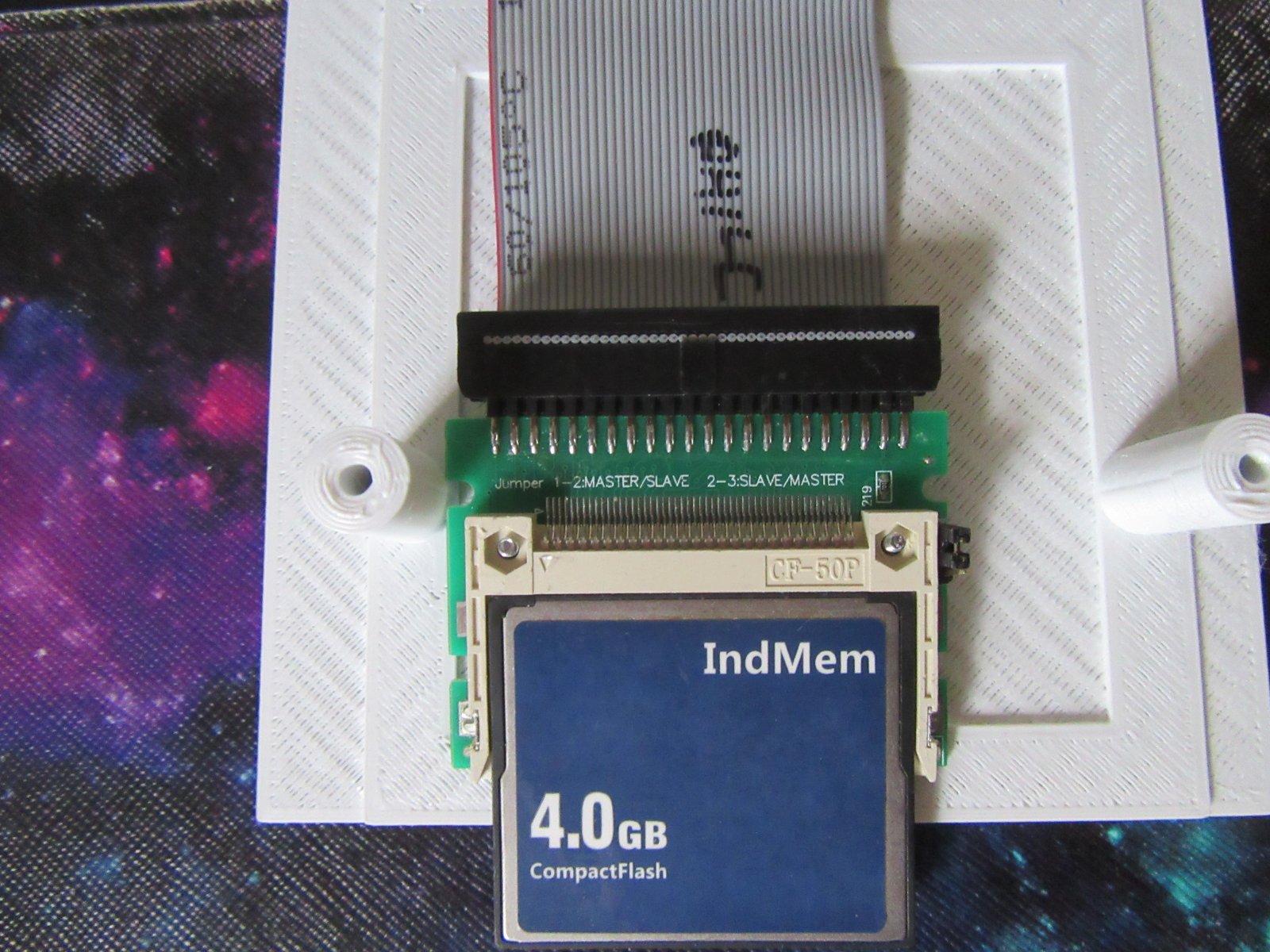

The holes didn't line up on this print So trying again...

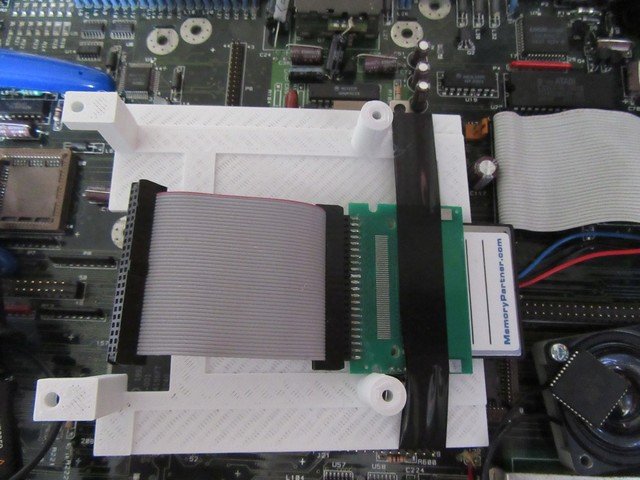

The bracket mounting post is in the way a fair bit. Plus I haven't got much wiggle room as that cap next to the floppy cable is also in the way I can't move it the other way as the RF box and caps are in the way. So this is going to be a very tight fit...


[exxos]

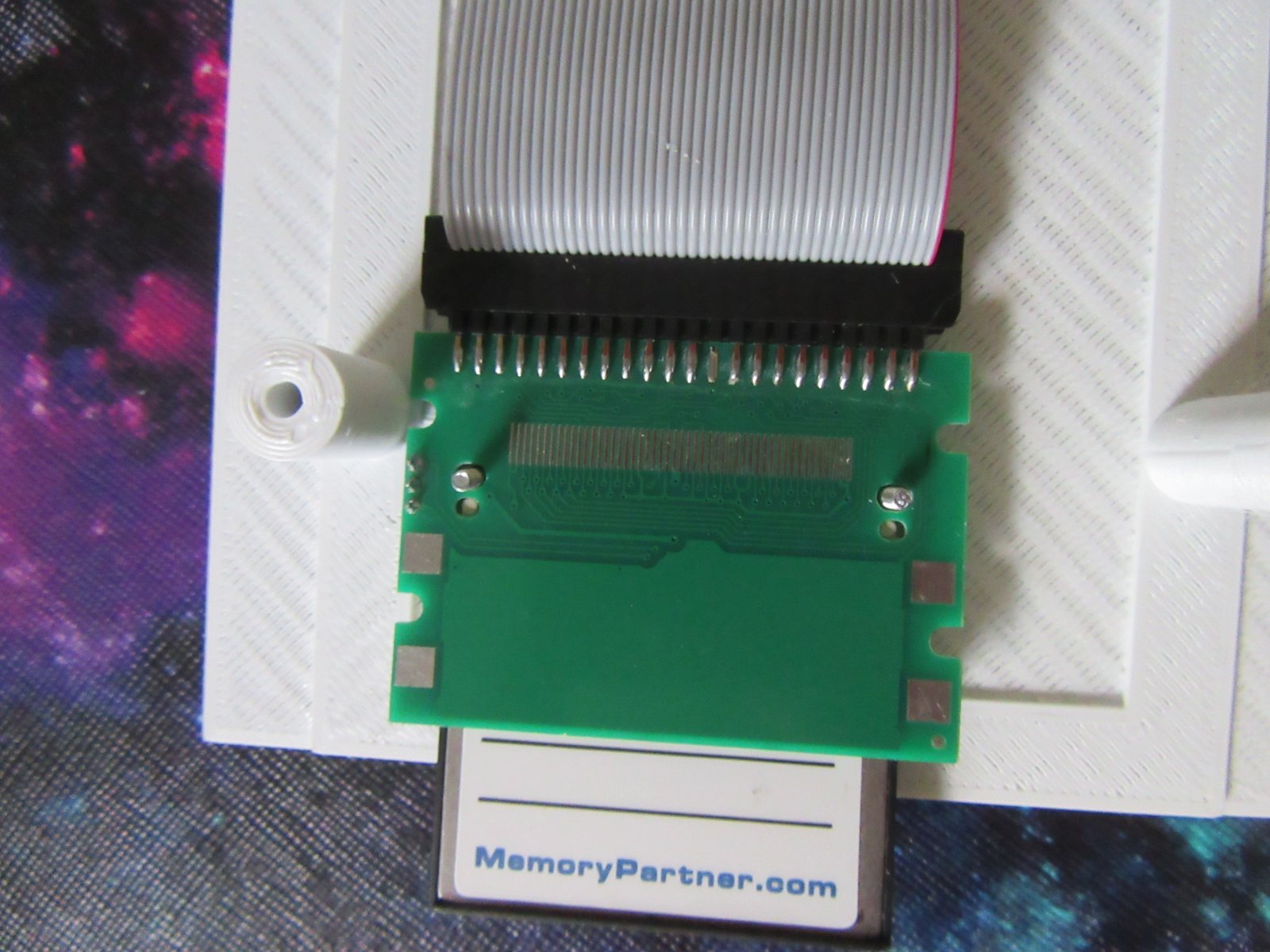

Ah.. thats super annoying, the adapter is actually upside down. I was going to use the CF socket holes as a low profile bolt down point but the CF socket is actually on the wrong side of the PCB



I need to double check the adapter in my falcon is actually that way before doing anything else.. but looking at images on the internet, it is "upside down" thats a spanner in the works again

[exxos]

I think I am just going to make a new CF adapter PCB. The amount of time im spending trying to fit a off-the-shelf CF adapter which isn't great anyway, I might as well just design my own PCB and have it fit exactly how I want it..

[JezC]

I think I am just going to make a new CF adapter PCB. The amount of time im spending trying to fit a off-the-shelf CF adapter which isn't great anyway, I might as well just design my own PCB and have it fit exactly how I want it..

Sounds good in principle...and then you can spend the time you save porting games to the Falcon with AI assistance!

[exxos]

Sounds good in principle...and then you can spend the time you save porting games to the Falcon with AI assistance!

[exxos]

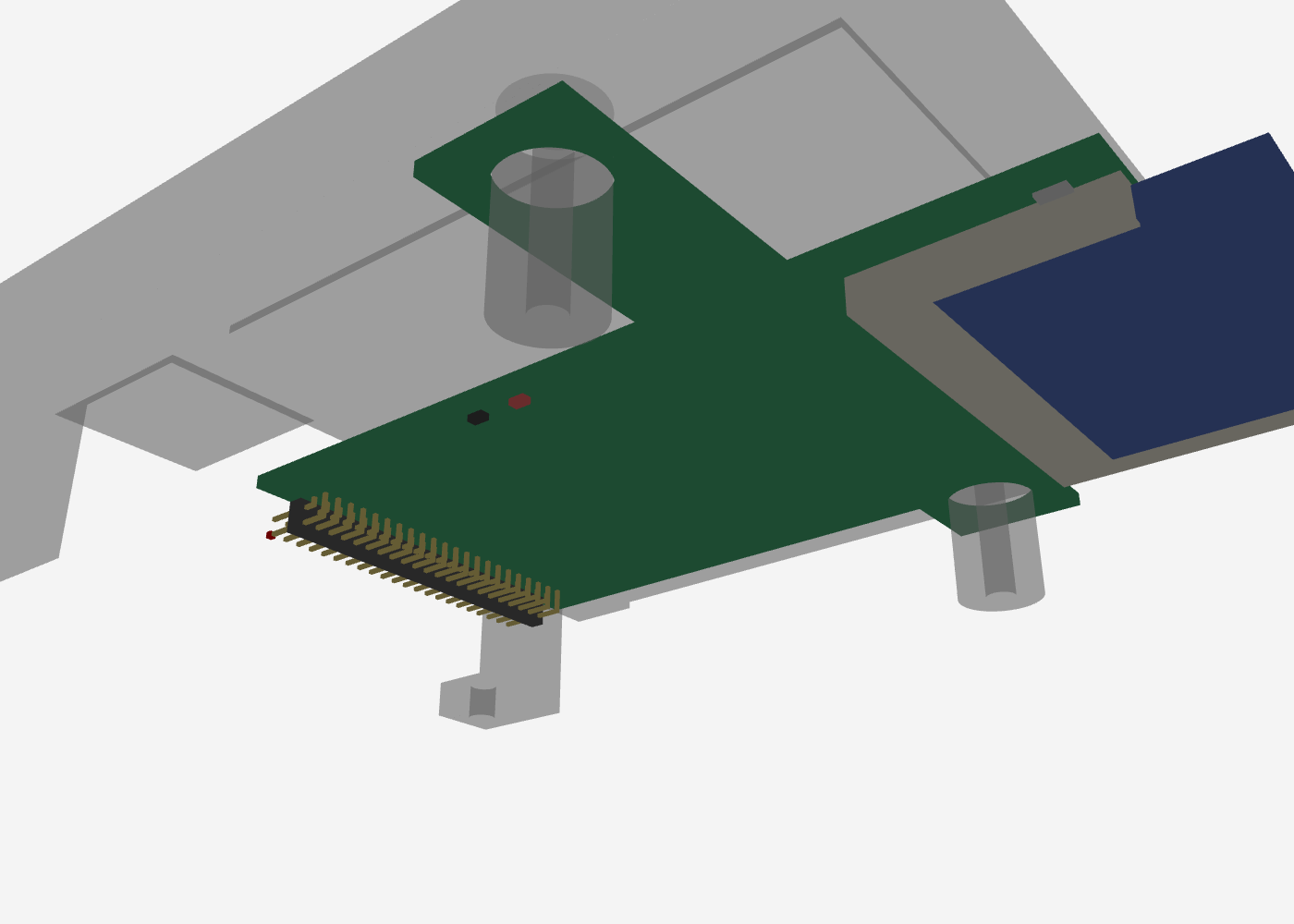

A crude 3-D render of the new proposed adapter board in place..
