So I have the first H5 HDMI version to boot. I guess I should solder in power for the floppy.



[Icky]

Now it's time to clean up all the patches and use some hot snot to tie down the wires.

[exxos]

So I have the first H5 HDMI version to boot. I guess I should solder in power for the floppy.

[Icky]

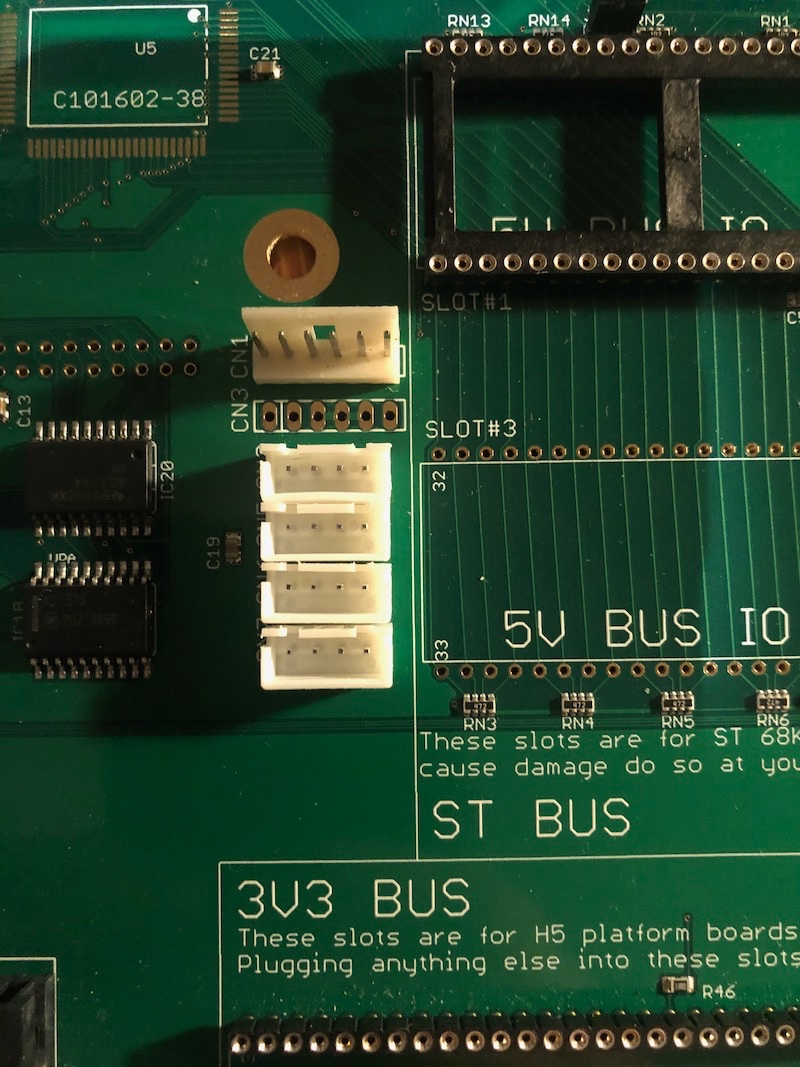

The power socket pads were moved for better spacing on the H5. Soldering some JST's in and they fit perfectly.


[Steve]

Hey @Icky is the hdmi circuitry available for the build or just still your prototype, sorry if I missed a memo ;D

[exxos]

Hey @Icky is the hdmi circuitry available for the build or just still your prototype, sorry if I missed a memo ;D

Only a few prototype exists so far.. but there is still some small bugs to fix yet. There is a scandoubler to HDMI which I need to test out yet as well.

[Icky]

I can confirm the S2 board works on the H5. We might need to play with the levels between the YM audio and the S2 audio as I have had to turn up the volume a little for the MIDI.

S2 boards are available here - https://www.serdashop.com/waveblaster and also there is an X2 version that should work on the H5


[DoG]

I have a X2 I can try when my H5 built is ready.

[Icky]

I have a X2 I can try when my H5 built is ready.

Nice. That will be a good thing to test so we can cross it off the list
