Raven060 (kodak80 build)

[kodak80]

Ordering a couple of white IO shields. https://kad3d.com.au/ is who I have been using in Australia.

[agranlund]

My recommendation is to use the original one in Github and a local print company or your own printer.

Don't understand why jlcpcb complained about the file.. I gave the one from Github to a guy at work and he said it was a super easy print.
The piece looks great and I'm looking forward to trying it out.
Apparently we have a whole Teams channel at work for 3d-printer enthusiasts so I asked there and got a print next day
(I work at a decently sized video games company so there's no shortage of tech enthusiasts of all kinds)

[kodak80]

My recommendation is to use the original one in Github and a local print company or your own printer.

Don't understand why jlcpcb complained about the file.. I gave the one from Github to a guy at work and he said it was a super easy print.
The piece looks great and I'm looking forward to trying it out.
Apparently we have a whole Teams channel at work for 3d-printer enthusiasts so I asked there and got a print next day
(I work at a decently sized video games company so there's no shortage of tech enthusiasts of all kinds)

Good to hear you got it printed.

I submitted multiple different STL to JLCPCB and they failed pretty much all of them. The STL submitted were available from sources such as Thingverse.

[luciodra]


This is the result of your effort. Thank you !

[Mikerochip]

Oh, that looks *really* nice!!!

[luciodra]

Oh, that looks *really* nice!!!

It's really perfect. The cables fit wonderfully.

[kodak80]

Oh, that looks *really* nice!!!

It's really perfect. The cables fit wonderfully.

Looks good. Based on the shoulders of giants... Thanks to the original template from @agranlund Github Pull Request submitted to add the Blender IO Shield file.

Here is the original Blender file I used to create the STL should anyone want to tweak it further:

Raven060 IO Shield.zip

(111.82 KiB) Downloaded 15 times

[kodak80]

Might be a good fit for my Raven when it is available.

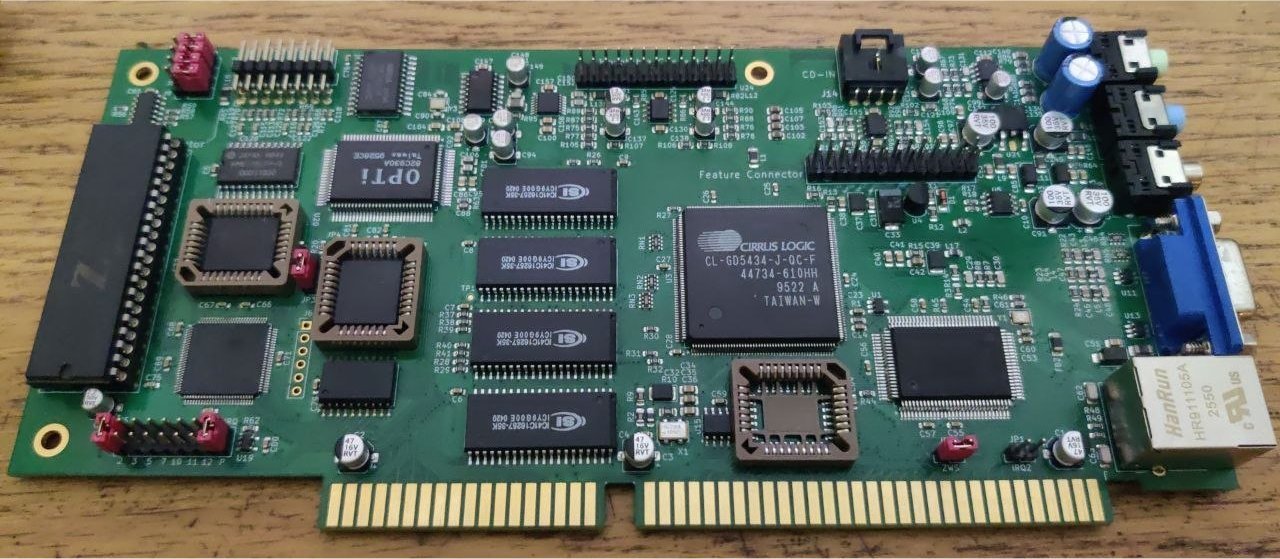

SoundVision PRO is an ISA 4in1 card aimed for use with 386/486 systems, features include:

• Cirrus Logic CL-GD5434 64-bit GUI accelerator VGA chipset with 2MB of VRAM

• Opti 82C930 sound controller with discrete Yamaha OPL3 (SBPRO/WSS compatible)

• PCMIDI Intelligent Mode MPU-401 interface

• Realtek RTL8019 10mbps network controller with bootrom support

https://pcmidi.eu/sonicvisionpro.html


[LarryL]

Cool, nice find!
Might be an excellent fit for the Raven
BTW: I think it is called „SonicVision“ - but on the website they also use both terms (SoundVision might be a typo)
Curious how much this will cost, once available…

[Mikerochip]

Cool, nice find!
Might be an excellent fit for the Raven
BTW: I think it is called „SonicVision“ - but on the website they also use both terms (SoundVision might be a typo)
Curious how much this will cost, once available…

I *knew* I knew that website. @LarryL, this isn't going to be cheap.
I've seen these fellas before, on Vogons.

Just the MPU-401 part, they sell for I think €110.
