Well I am starting a blog with or without a new forum yet.

This is one of those "expensive" amps which I worked on. I remember it got millions of good reviews (swear all fake) but the design of the thing OMG. The whole thing was how NOT to design a digital power amplifier.

Anyway, here is some audio p0rn from my "psaudiohca2" folder.









[exxos]

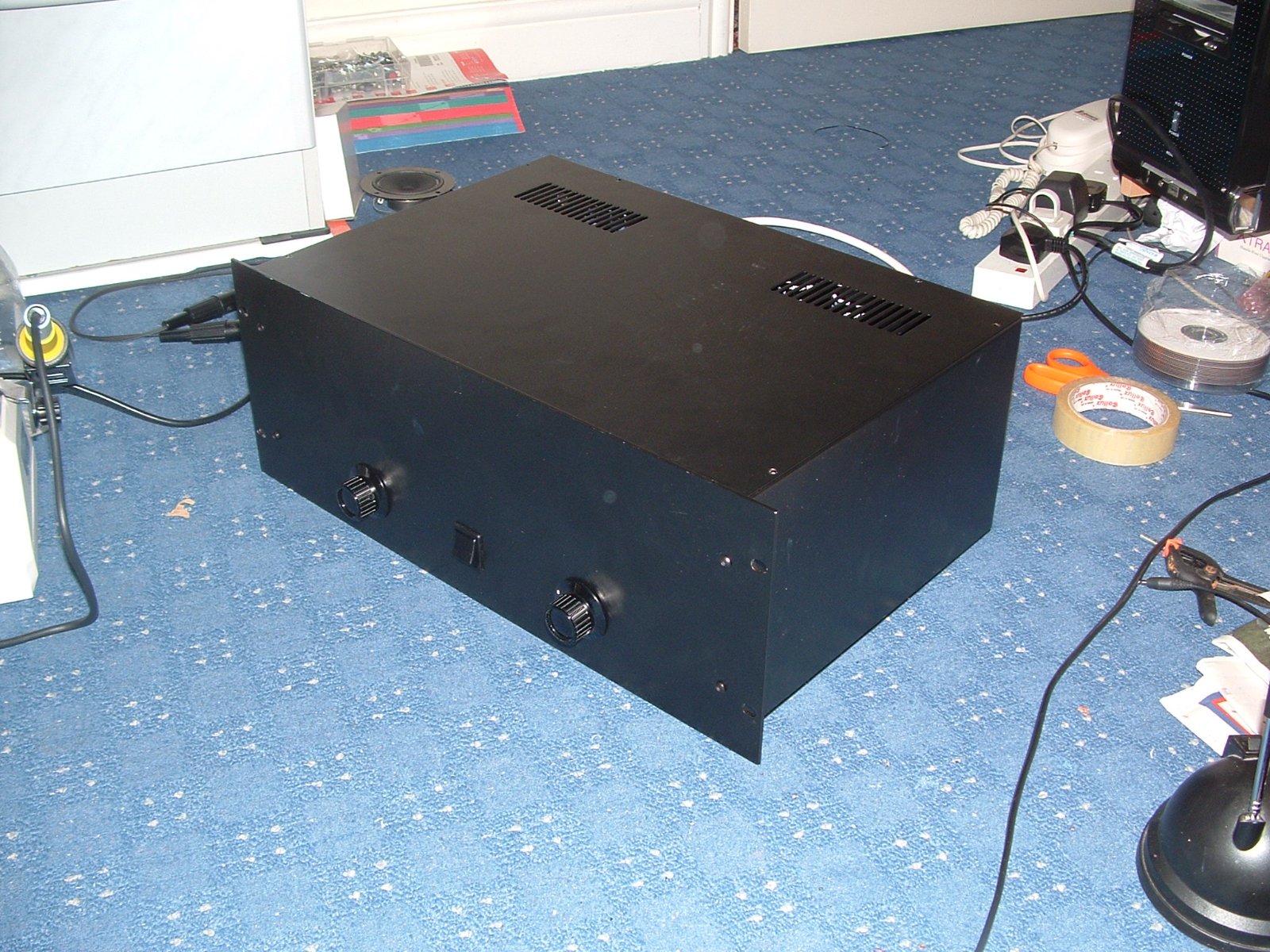

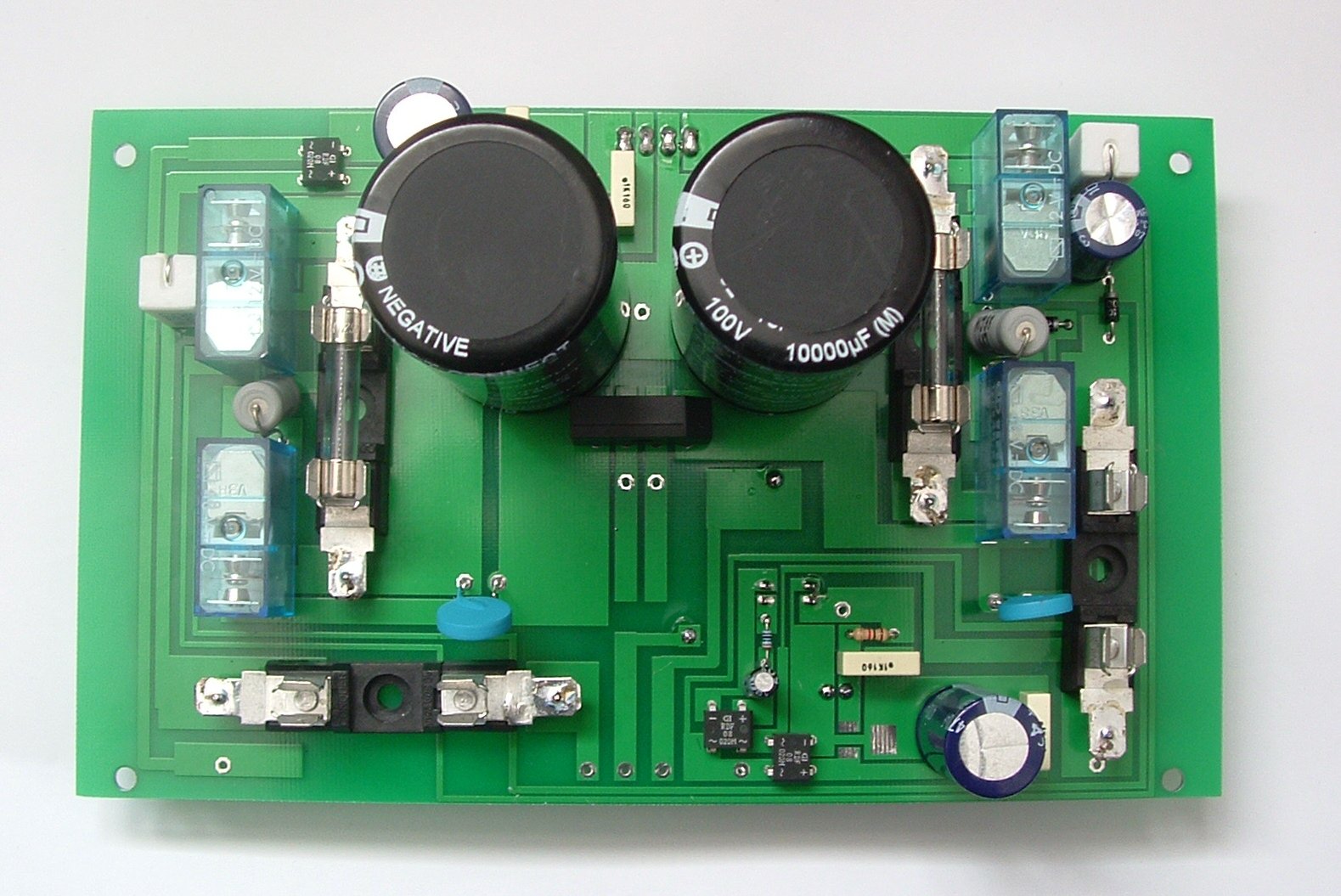

This was one of my test power amps. Was using a Tripath TDA2500 module. 800+800watts RMS. I designed my own soft start power power supply as well. The turn on surge would blow a 13amp fuse otherwise

This was one of the insides of one of the Tripath chips.


Custom made transformer.






[exxos]

Inspired by the TDA2500 chip I designed my own chip. Looks like I even was beta testing it as well. Don't remember doing that.



[exxos]

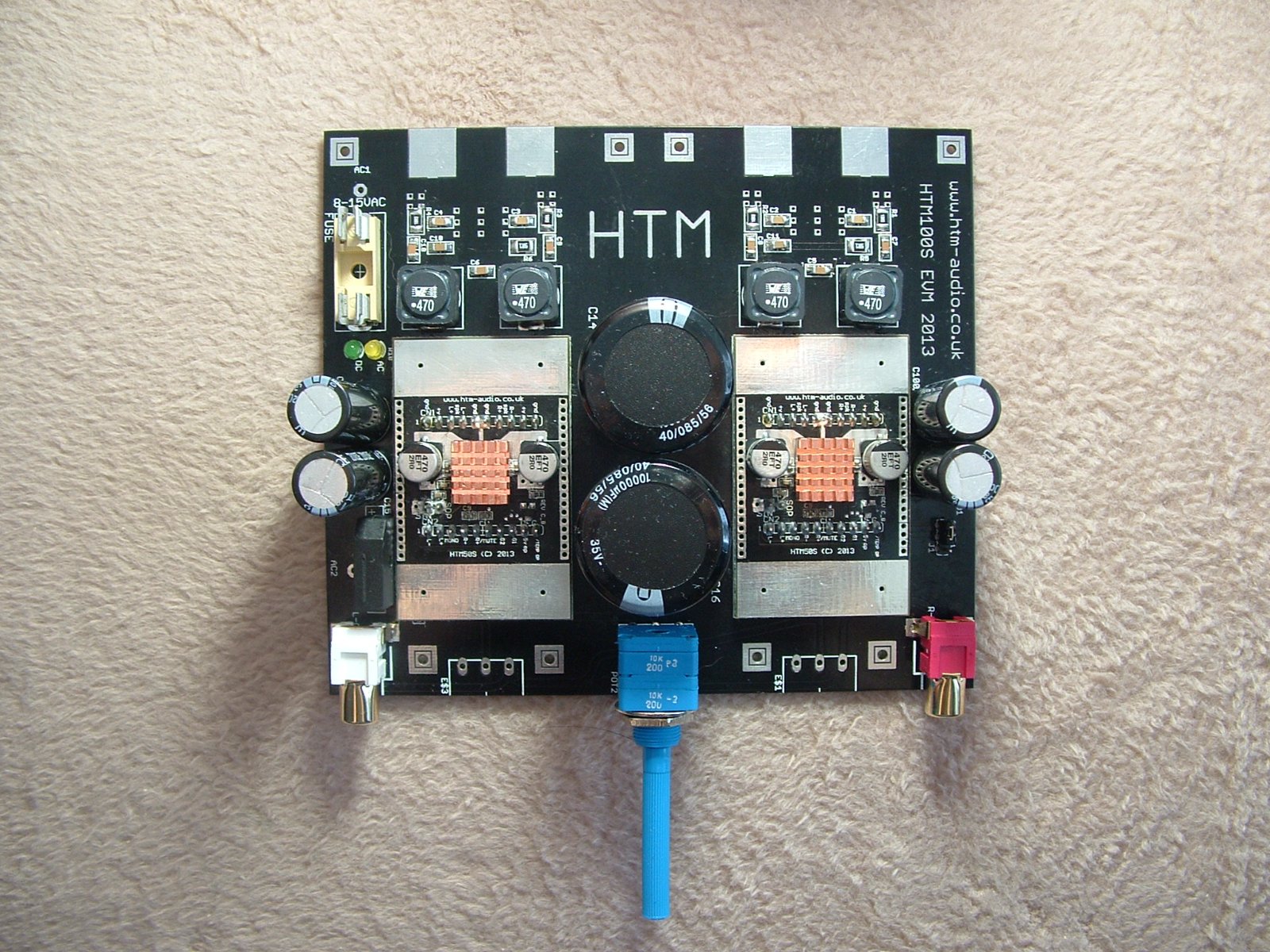

These are the HTM50 modules which are on sale in my store. One of the power amps I designed and was selling under the HTM brand name. The HTM50 modules were uses in theatres around london.




[exxos]

A 40amp pulse PSU I built to test saturation of inductors for audio output filtering.



[exxos]

awwww one of my first amps, TDA2030 / TDA2040 based amp.


[exxos]

Zetex based digital power amp prototype.



[exxos]

Tripath power amp testing with a digital audio volume control prototype. Firmware by the late Techie Alison.


[exxos]

Some more power amps I have played with.






[exxos]

Prototype sub-woofer my dad and I built.


General speakers we built.


One of the high power speakers we built for testing amps.
