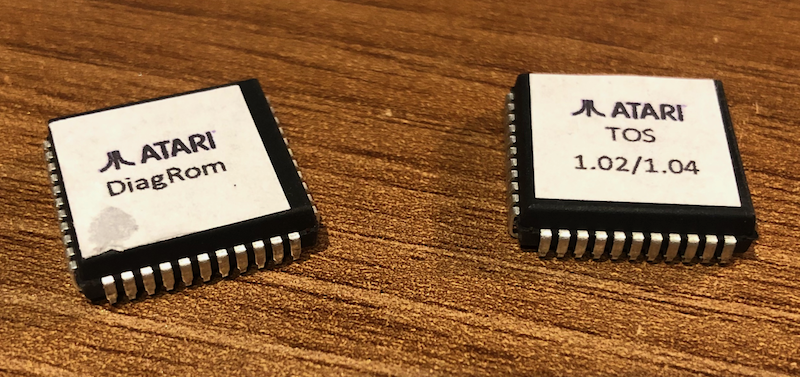

With that said it was designed for a technically challenged technican. The tests other than memory are go/no-go tests. They really don't even provide a good description of what the tests do to test functionality. They just provide pass/fail as an output. If you want to trouble shoot based on the failure its tuff when you don't know how the test functions. All in all I find the atari card quite useful but the DiagROM will provide additional abilities which I am planning to try. It will be an advantage to add tests and know exactly what those tests are doing. Believe I'll try a cart version first. If execution can't make it to the cart there's a good chance the code won't be able to hit the serial chip registers either. Looks like a nice tool.
Code: Select all
6 Testing Bus Error handling
No (I6) error
ĸ
I2 RAM disturbance 0000000000000000 0100000000000000 000044
E9 Bad instruction fetch
ĸ
I2 RAM disturbance 0000000000000000 0100000000000000 0007FE
I6 Testing Bus Error handling
No (I6) error
ĸ
I6 Testing Bus Error handling
No (I6) error
[Disconnected]
[Connected]
ĸ
I6 Testing Bus Error handling
No (I6) error
ĸ
I2 RAM disturbance 0000000000000000 0100000000000000 000290ĸĸĸ
I2 RAM disturbance 0000000000000000 0100000000000000 0007F2
I6 Testing Bus Error handling
No (I6) error
K
EB Bus Error Access Address: FA0E28 Program Counter: FA4DEA
E9 Bad instruction fetch
ĸĸĸ
I6 Testing Bus Error handling
No (I6) error
Keyboard failed, connect RS232 terminal
Mega and ST Field Service Diagnostic Rev. 4.3
1990, Atari Corp.
4M RAM Keyboard rev. 0 60 Hz Version 1.2 USA NTSC
R RAM O O.S. ROM C Color
K Keyboard M MIDI S Serial Port
A Audio T Timing D DMA Port
F Floppy Disk P Printer/Joy Ports H High resolution
J Hard Disk Write/Read (use SH204/SH205/Megafile)
G short BLiT test Y long BLiT test
L Real-time Clock
X Expansion Connector
Q Run all tests
Z Run internal tests (R,O,C,K,A,T,L,G)
E Examine/Modify memory
B Set RS232 rate
V toggle video output--50/60 Hz
? Help
Enter letter(s), and RETURN: X
/code]
