Good stuff, should be completed soon then?HigashiJun wrote: Thu Apr 03, 2025 12:04 pm Yay !
The case fan should reach me tomorrow.
Can't believe it almost took one month to be delivered.
I also managed to get the missing 1206x4 1K isolated resistor arrays, and the 10K should arrive soon.
Damn, these ones were a real PITA to get...
Can all registered uses please login, even just for a few minutes..
It helps build a picture where our "good traffic" is coming from..
Thanks :)
It helps build a picture where our "good traffic" is coming from..
Thanks :)
New (and last ?) inbound
-
rubber_jonnie
- Site Admin
- Posts: 15150
- Joined: Thu Aug 17, 2017 7:40 pm
- Location: Essex
- Contact:
Re: New (and last ?) inbound
Collector of many retro things!
800XL and 65XE both with Ultimate1MB,VBXL/XE & PokeyMax, SIDE3, SDrive Max, 2x 1010 cassette, 2x 1050 one with Happy mod, 3x 2600 Jr, 7800 and Lynx II
Approx 20 STs, including a 520 STM, 520 STFMs, 3x Mega ST, MSTE & 2x 32 Mhz boosted STEs
Plus the rest, totalling around 50 machines including a QL, 3x BBC Model B, Electron, Spectrums, ZX81 etc...
800XL and 65XE both with Ultimate1MB,VBXL/XE & PokeyMax, SIDE3, SDrive Max, 2x 1010 cassette, 2x 1050 one with Happy mod, 3x 2600 Jr, 7800 and Lynx II
Approx 20 STs, including a 520 STM, 520 STFMs, 3x Mega ST, MSTE & 2x 32 Mhz boosted STEs
Plus the rest, totalling around 50 machines including a QL, 3x BBC Model B, Electron, Spectrums, ZX81 etc...
-
HigashiJun
- Posts: 2405
- Joined: Fri Jun 19, 2020 7:21 am
- Location: Tokyo
Re: New (and last ?) inbound
Yes.
Fitting the fan is easy, and soldering four resistor arrays to the XT CF mini won't take me long.
-
rubber_jonnie
- Site Admin
- Posts: 15150
- Joined: Thu Aug 17, 2017 7:40 pm
- Location: Essex
- Contact:
Re: New (and last ?) inbound
Great, looking forward to pictures.HigashiJun wrote: Thu Apr 03, 2025 12:24 pmYes.
Fitting the fan is easy, and soldering four resistor arrays to the XT CF mini won't take me long.
Collector of many retro things!
800XL and 65XE both with Ultimate1MB,VBXL/XE & PokeyMax, SIDE3, SDrive Max, 2x 1010 cassette, 2x 1050 one with Happy mod, 3x 2600 Jr, 7800 and Lynx II
Approx 20 STs, including a 520 STM, 520 STFMs, 3x Mega ST, MSTE & 2x 32 Mhz boosted STEs
Plus the rest, totalling around 50 machines including a QL, 3x BBC Model B, Electron, Spectrums, ZX81 etc...
800XL and 65XE both with Ultimate1MB,VBXL/XE & PokeyMax, SIDE3, SDrive Max, 2x 1010 cassette, 2x 1050 one with Happy mod, 3x 2600 Jr, 7800 and Lynx II
Approx 20 STs, including a 520 STM, 520 STFMs, 3x Mega ST, MSTE & 2x 32 Mhz boosted STEs
Plus the rest, totalling around 50 machines including a QL, 3x BBC Model B, Electron, Spectrums, ZX81 etc...
-
HigashiJun
- Posts: 2405
- Joined: Fri Jun 19, 2020 7:21 am
- Location: Tokyo
-
HigashiJun
- Posts: 2405
- Joined: Fri Jun 19, 2020 7:21 am
- Location: Tokyo
Re: New (and last ?) inbound

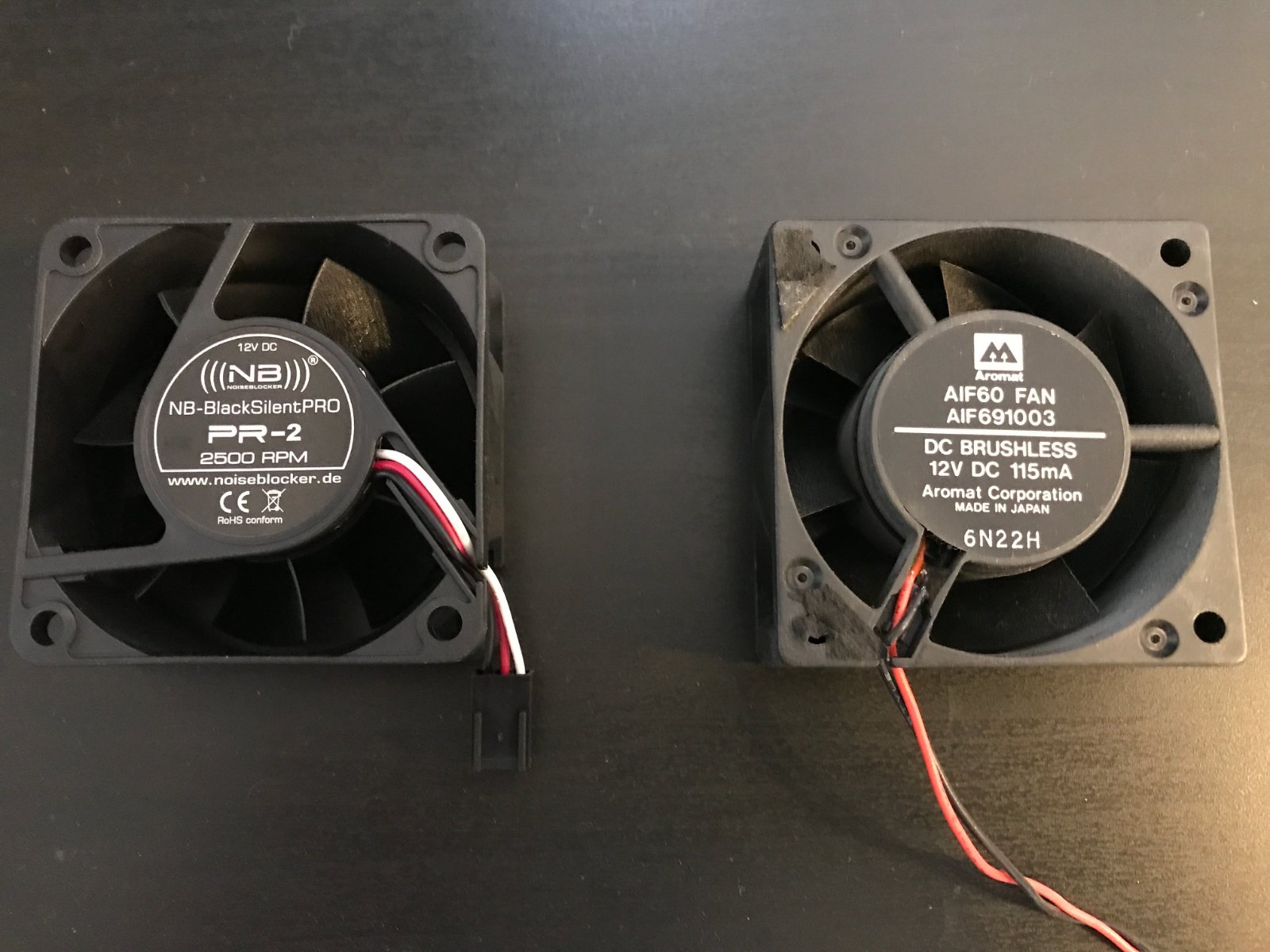

I have finally fitted the new PSU fan.
The beauty and the beast...
And the final result, with cables routed.
The missing resistor arrays should arrive tomorrow, so I can finish the XT CF mini.
- 1.JPG (227.35 KiB) Viewed 550 times
- 2.JPG (454.12 KiB) Viewed 550 times
The missing resistor arrays should arrive tomorrow, so I can finish the XT CF mini.
-
rubber_jonnie
- Site Admin
- Posts: 15150
- Joined: Thu Aug 17, 2017 7:40 pm
- Location: Essex
- Contact:
Re: New (and last ?) inbound
Nice
Collector of many retro things!
800XL and 65XE both with Ultimate1MB,VBXL/XE & PokeyMax, SIDE3, SDrive Max, 2x 1010 cassette, 2x 1050 one with Happy mod, 3x 2600 Jr, 7800 and Lynx II
Approx 20 STs, including a 520 STM, 520 STFMs, 3x Mega ST, MSTE & 2x 32 Mhz boosted STEs
Plus the rest, totalling around 50 machines including a QL, 3x BBC Model B, Electron, Spectrums, ZX81 etc...
800XL and 65XE both with Ultimate1MB,VBXL/XE & PokeyMax, SIDE3, SDrive Max, 2x 1010 cassette, 2x 1050 one with Happy mod, 3x 2600 Jr, 7800 and Lynx II
Approx 20 STs, including a 520 STM, 520 STFMs, 3x Mega ST, MSTE & 2x 32 Mhz boosted STEs
Plus the rest, totalling around 50 machines including a QL, 3x BBC Model B, Electron, Spectrums, ZX81 etc...
-
HigashiJun
- Posts: 2405
- Joined: Fri Jun 19, 2020 7:21 am
- Location: Tokyo
-
HigashiJun
- Posts: 2405
- Joined: Fri Jun 19, 2020 7:21 am
- Location: Tokyo
Re: New (and last ?) inbound
While waiting for the missing resistor arrays, I've finished the VGA card install:
I had to file down the metal bracket in order to let it seat properly on the plastic slot cover, drill 2 holes on each side of the bracket and add 4 washers on each side to the VGA connector screws (between the connector and the bracket) so that the bracket is now aligned horizontally.
Looks quite good for me...
And with the top lid closed.
I now have 3 expansions in the Tandy: the RAM & DMA card, the VGA card and the XT CF mini.
I would prefer to have the PICOmem instead, bus as I wrote in another post, I don't want to modify the lid for that.
The hardest part is done !
- 1.JPG (287.23 KiB) Viewed 529 times
- 2.JPG (191.52 KiB) Viewed 529 times
- 3.JPG (194.88 KiB) Viewed 529 times
I now have 3 expansions in the Tandy: the RAM & DMA card, the VGA card and the XT CF mini.
I would prefer to have the PICOmem instead, bus as I wrote in another post, I don't want to modify the lid for that.
The hardest part is done !
-
rubber_jonnie
- Site Admin
- Posts: 15150
- Joined: Thu Aug 17, 2017 7:40 pm
- Location: Essex
- Contact:
Re: New (and last ?) inbound
Just looking at your photos and the Tandy seems to have space for a PicoMEM, you could probably use it without a backplate, so I'm not 100% sure why the lid would need a mod.
Are all your slots full height? My XT-IDE has been hard to configure and seems to hang my Amstrad, but the PicoMEM works flawlessly.
Are all your slots full height? My XT-IDE has been hard to configure and seems to hang my Amstrad, but the PicoMEM works flawlessly.
Collector of many retro things!
800XL and 65XE both with Ultimate1MB,VBXL/XE & PokeyMax, SIDE3, SDrive Max, 2x 1010 cassette, 2x 1050 one with Happy mod, 3x 2600 Jr, 7800 and Lynx II
Approx 20 STs, including a 520 STM, 520 STFMs, 3x Mega ST, MSTE & 2x 32 Mhz boosted STEs
Plus the rest, totalling around 50 machines including a QL, 3x BBC Model B, Electron, Spectrums, ZX81 etc...
800XL and 65XE both with Ultimate1MB,VBXL/XE & PokeyMax, SIDE3, SDrive Max, 2x 1010 cassette, 2x 1050 one with Happy mod, 3x 2600 Jr, 7800 and Lynx II
Approx 20 STs, including a 520 STM, 520 STFMs, 3x Mega ST, MSTE & 2x 32 Mhz boosted STEs
Plus the rest, totalling around 50 machines including a QL, 3x BBC Model B, Electron, Spectrums, ZX81 etc...
-
HigashiJun
- Posts: 2405
- Joined: Fri Jun 19, 2020 7:21 am
- Location: Tokyo
Re: New (and last ?) inbound
@rubber_jonnie
Indeed, the Tandy has space for three "Tandy plus" expansions.
The RAM & DMA board is a "plus" expansion, but the VGA card and the XT Cf mini are not.
Each plus expansion lays in front of its respective slot cover, but if you fit a standard ISA card you will always have the second slot unpopulated whatever you do (unless you remove the RAM & DMA card).
Since I want to keep the DMA, there is no other alternative. I can install a PICOmem instead of the VGA card, so the PICOmem will occupy the third slot, and the VGA card in the last connector but I will then have to cut the top lid to let the VGA connector out.
And as you suggest, I can try to fit the PICOmem without a bracket (that is what I wanted to do), but I'm not sure if the protruding SD card will not collide with the vertical plastic of the top lid.
Indeed, the Tandy has space for three "Tandy plus" expansions.
The RAM & DMA board is a "plus" expansion, but the VGA card and the XT Cf mini are not.
Each plus expansion lays in front of its respective slot cover, but if you fit a standard ISA card you will always have the second slot unpopulated whatever you do (unless you remove the RAM & DMA card).
Since I want to keep the DMA, there is no other alternative. I can install a PICOmem instead of the VGA card, so the PICOmem will occupy the third slot, and the VGA card in the last connector but I will then have to cut the top lid to let the VGA connector out.
And as you suggest, I can try to fit the PICOmem without a bracket (that is what I wanted to do), but I'm not sure if the protruding SD card will not collide with the vertical plastic of the top lid.
