Alienkid H5 C1 build

[Icky]

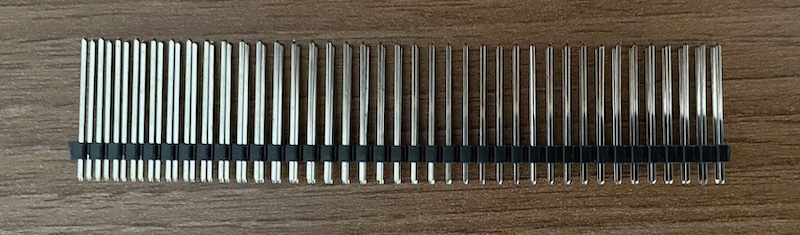

@alienkidmj12 - these type of headers


[alienkidmj12]

ah nice, also i forgot my name was on the alpha board dave sives

[alienkidmj12]

i'm hoping this fits
https://www.ebay.co.uk/itm/144008410323 ... Sw1gNgdzpu

[alienkidmj12]

OK so ram board received and fits


No signal to screen with the VGA out adapter. Anything I'm missing guys, I have memory set to 4mb





[PhilC]

@alienkidmj12 you need to put some jumpers on the 2:ADC headers and the same for the floppy

[alienkidmj12]

Yup. OK so turned dac blanking on


Floppy a set to internal


Still no signal hmm

[alienkidmj12]

Should I have low or high bank. I've dual tos from exxos

Dave

[Icky]

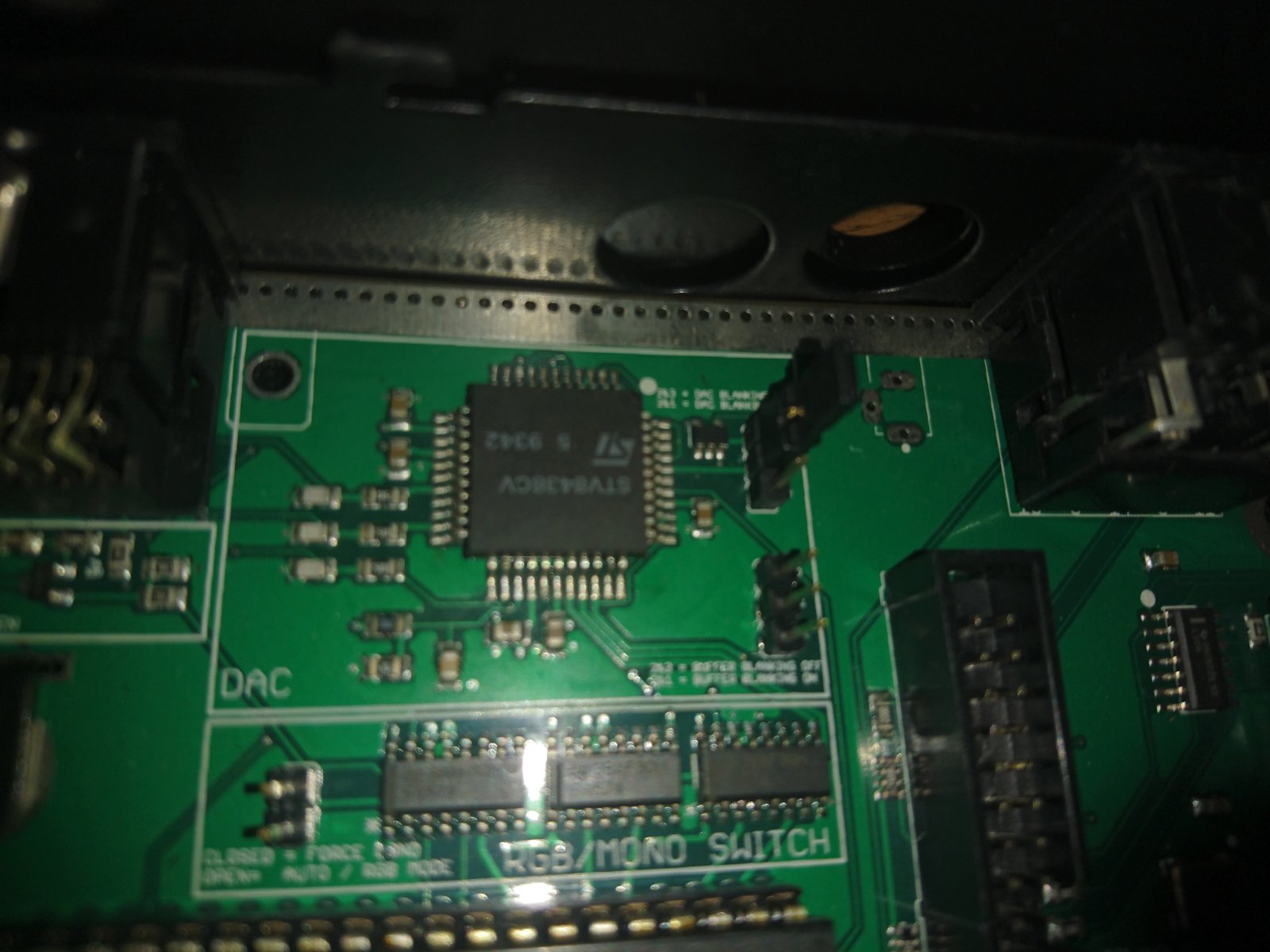

@alienkidmj12 - I noticed in previous pictures there was no jumper on the hsync header by the monitor socket. Do you have that one closed?

[alienkidmj12]

Good point. It's still open OK I now have a blue light on monitor. white screen


left for quite some time, still white..........perhaps i need exxos expertise here, any idea mate ? white screen, doesn''t shift, i may reflow the solder connections for the memory card later on, can't see it being the ic's but you never know.

@exxos

[exxos]

I would try the diagnostic cartridge over serial link to PC.
