IngoQs attempt at messing up the H4

[PaulJ]

Finally I found some time to start soldering. I managed to finish the Reset circuit, composite gen, mono gen, audio gen, DAC circuit and RGB/Mono switch:

I believe you should take a gander at cr14. Looks like it maybe in backwards.

[Icky]

@PaulJ - you must have the eyes of a hawk. Well spotted.

[PaulJ]

@PaulJ - you must have the eyes of a hawk. Well spotted.

Don't know, that kinda thing just reaches out and slaps me.

[IngoQ]

I believe you should take a gander at cr14. Looks like it maybe in backwards.

@PaulJ Wow, thanks! You probably saved me hours of looking for that one

Which motivates me to upload better pictures of my progress, you never know if someone is nice enough to have a look at them

[PaulJ]

@IngoQ when people post pictures I usually look for obvious mistakes, @PhilC usually makes em easy to spot like putting the reset chip in perpendicular to its intended position.

[PhilC]

@PaulJ I was just keeping you on your toes us all.

[PaulJ]

I know @PhilC , you did throw in the backward diode in addition to the reset chip. You thought you could sneak that one in figuring I'd give up after the reset find.

[PhilC]

Happy to help Paul

[IngoQ]

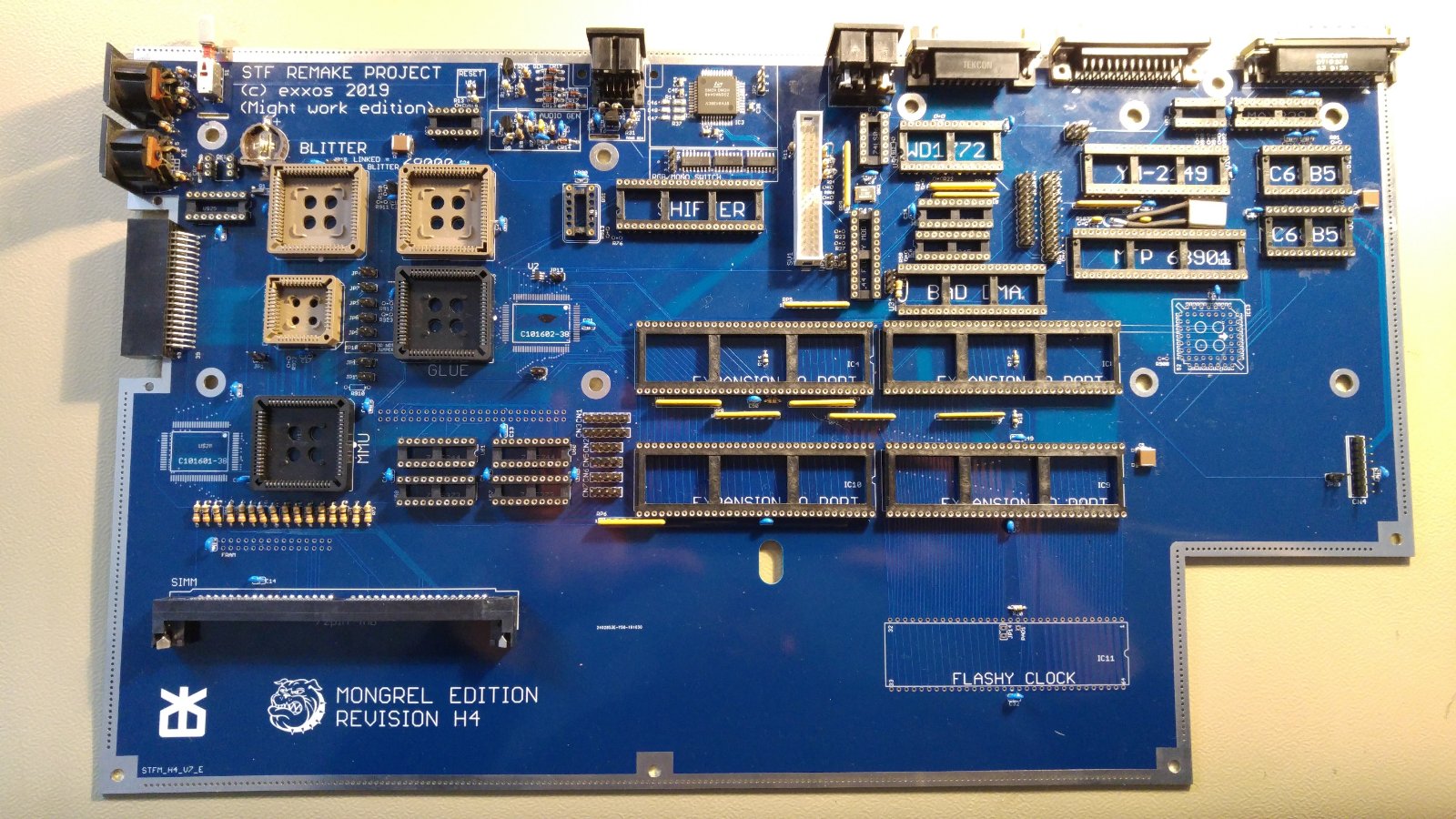

My back is getting better, so I here is some progress:


All sockets in place, only some of the resistors are missing, and then on to the fixes. I'm positive I get it finished this year
