Bikerbob's H5 C1 build

Share your building progress here!
User avatar
exxos
Site Admin
Site Admin
Posts: 28432
Joined: 16 Aug 2017 23:19
Location: UK

Re: Bikerbob's H5 C1 build

Post by exxos »

The jack is for power. Its intended to give external power to ultrasatan etc. But its not documented as the intended sockets don't fit. But no reason a chassis mount jack couldn't be used.
User avatar
Bikerbob
Posts: 535
Joined: 10 Nov 2017 19:30
Location: Mississauga, ON

Re: Bikerbob's H5 C1 build

Post by Bikerbob »

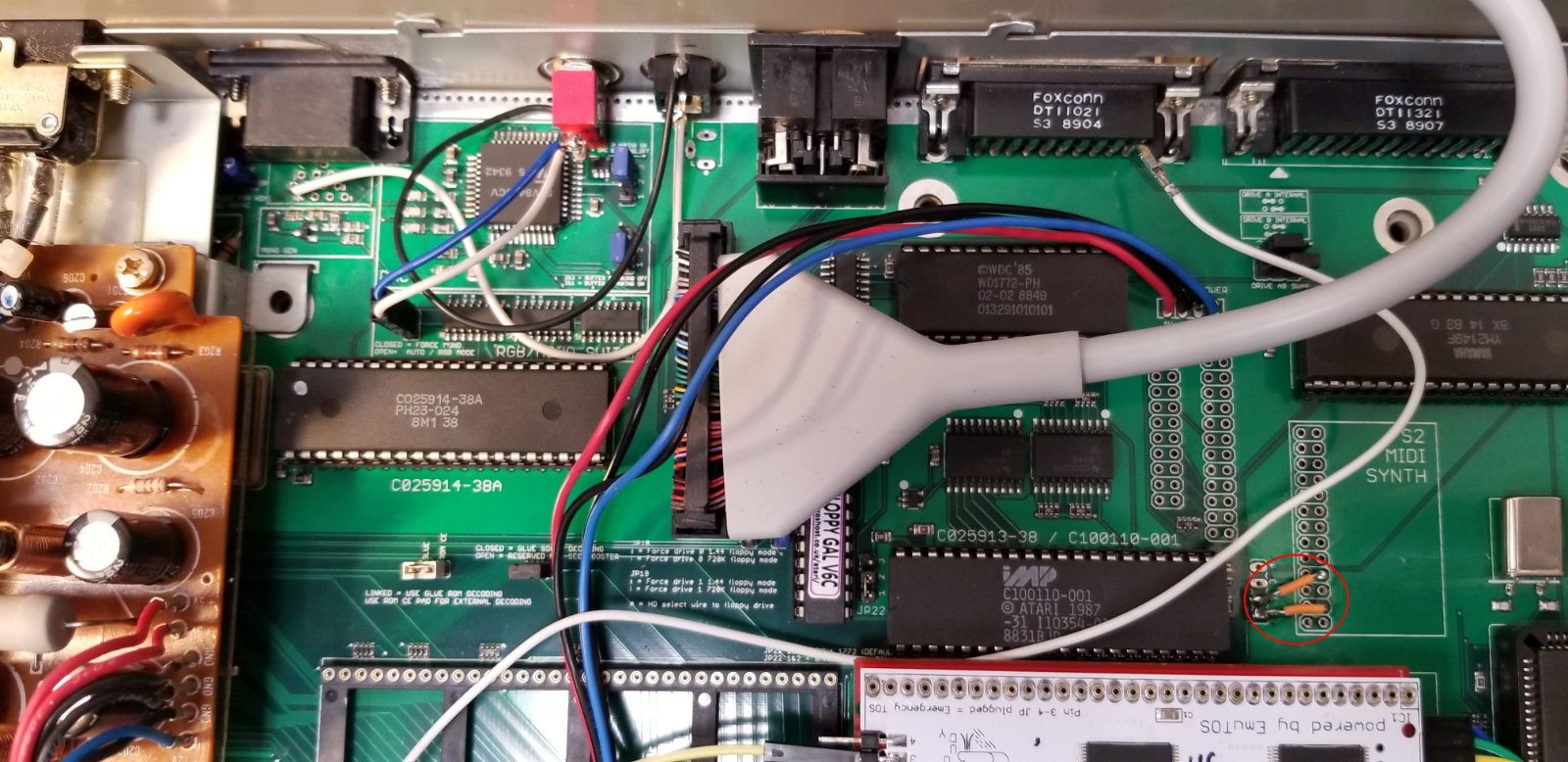

Well.. no joy on the Audio fix. Assuming I did it correct. - I know the pic does not show the solder joints the best.. but I have examined my jumpers they are separate and solid and clean.


SO, unfortunately I will go back to a basic setup.. just cpu, only, see if that does anything to rid the issue.. it is an RF issue.. there are lines that "shake" with disk access and a constant white noise in the background.. Have to figure something out.
You do not have the required permissions to view the files attached to this post.
User avatar
exxos
Site Admin
Site Admin
Posts: 28432
Joined: 16 Aug 2017 23:19
Location: UK

Re: Bikerbob's H5 C1 build

Post by exxos »

Bikerbob wrote: 06 Feb 2022 00:20 there are lines that "shake" with disk access and a constant white noise in the background.. Have to figure something out.
Sounds like a bad PSU. Though not sure what else could cause that. But I would check all the glue joints as it deals with a lot of the system like sound and video etc.

Taking stuff back to stock and keeping it simple is a good idea.
DaveC
Posts: 125
Joined: 18 Sep 2020 18:24

Re: Bikerbob's H5 C1 build

Post by DaveC »

Bikerbob wrote: 06 Feb 2022 00:20 Well.. no joy on the Audio fix. Assuming I did it correct. - I know the pic does not show the solder joints the best.. but I have examined my jumpers they are separate and solid and clean.

The points you've soldered up are already connected by traces on the board.

I've put jumpers on the module header like this on my board.


1 & 2 on the other points are left and right and 4 is ground.
You do not have the required permissions to view the files attached to this post.
User avatar
Bikerbob
Posts: 535
Joined: 10 Nov 2017 19:30
Location: Mississauga, ON

Re: Bikerbob's H5 C1 build

Post by Bikerbob »

exxos wrote: 06 Feb 2022 00:37
Bikerbob wrote: 06 Feb 2022 00:20 there are lines that "shake" with disk access and a constant white noise in the background.. Have to figure something out.
Sounds like a bad PSU. Though not sure what else could cause that. But I would check all the glue joints as it deals with a lot of the system like sound and video etc.

Taking stuff back to stock and keeping it simple is a good idea.
Well I have had the same thing happen with 3 PSU.. 2 of the 3 with new caps.

I will look at the GLUE.. and also try this all again with a very basic setup.. see what I get.

DaveC - so you're saying that those jumpers are all I really needed to do? Bummer.. well it's done now.. I will not be adding any midi stuff.. so I will leave the soldered jumpers I have installed.

James
User avatar
exxos
Site Admin
Site Admin
Posts: 28432
Joined: 16 Aug 2017 23:19
Location: UK

Re: Bikerbob's H5 C1 build

Post by exxos »

I think you need to work on one problem at a time. Take the machine back to stock, and use the VGA socket and a compatible monitor and see if the video improves.

I've never seen RF issues on any of the remake boards, so don't know how that's even possible. Floppy doesn't have anything to do with video, the only common thing is the power. I've used a recapped original PSU without issues on all the remake boards. Could it be you're overloading the original PSU with all the addons you have ? What happens on video test on the diagnostic cartridge ?
User avatar
Bikerbob
Posts: 535
Joined: 10 Nov 2017 19:30
Location: Mississauga, ON

Re: Bikerbob's H5 C1 build

Post by Bikerbob »

exxos wrote: 07 Feb 2022 01:10 I think you need to work on one problem at a time. Take the machine back to stock, and use the VGA socket and a compatible monitor and see if the video improves.

I've never seen RF issues on any of the remake boards, so don't know how that's even possible. Floppy doesn't have anything to do with video, the only common thing is the power. I've used a recapped original PSU without issues on all the remake boards. Could it be your overloading the original PSU with all the addons you have ? What happens on video test on the diagnostic cartridge ?
Same issues on Diagnostic cart (exxos version) ... I will remove the addons tomorrow, and do some more testing.. It does it if I remove the floppy drive.. the background white noise is there no matter.

Anyway.. I will post tomorrow my results.

James
DaveC
Posts: 125
Joined: 18 Sep 2020 18:24

Re: Bikerbob's H5 C1 build

Post by DaveC »

Bikerbob wrote: 07 Feb 2022 00:45 DaveC - so your saying that those jumpers are all I really needed to do? Bummer.. well it done now.. I will not be adding any midi stuff.. so I will leave the soldered jumpers I have installed.

James
The jumpers you've installed aren't grounding the left/right audio channels though, you've just soldered left to left and right to right on different connectors. They're already connected together by traces on the board, so you haven't actually done what was needed for the audio fix, hence the continuing noise.
User avatar
Bikerbob
Posts: 535
Joined: 10 Nov 2017 19:30
Location: Mississauga, ON

Re: Bikerbob's H5 C1 build

Post by Bikerbob »

DaveC wrote: 07 Feb 2022 06:26
Bikerbob wrote: 07 Feb 2022 00:45 DaveC - so your saying that those jumpers are all I really needed to do? Bummer.. well it done now.. I will not be adding any midi stuff.. so I will leave the soldered jumpers I have installed.

James
The jumpers you've installed aren't grounding the left/right audio channels though, you've just soldered left to left and right to right on different connectors. They're already connected together by traces on the board, so you haven't actually done what was needed for the audio fix, hence the continuing noise.
Oh... sorry then I guess I read the drawing wrong. SO your jumpers do what I need?? I can remove my solder points and just put on those jumpers?
(might be cleaner - I'll just solder in a small jumper block to cover that section)

OR you say "4 is ground, so on those other points.. if i just combine 1,2,4 - does that do what I need?

James
DaveC
Posts: 125
Joined: 18 Sep 2020 18:24

Re: Bikerbob's H5 C1 build

Post by DaveC »

The drawing shows the traces on the board, that's why I did it the way I did as I'd already soldered a header in place.

But yes you can do it either of those 2 ways.
