exxos finally in the game!

[exxos]

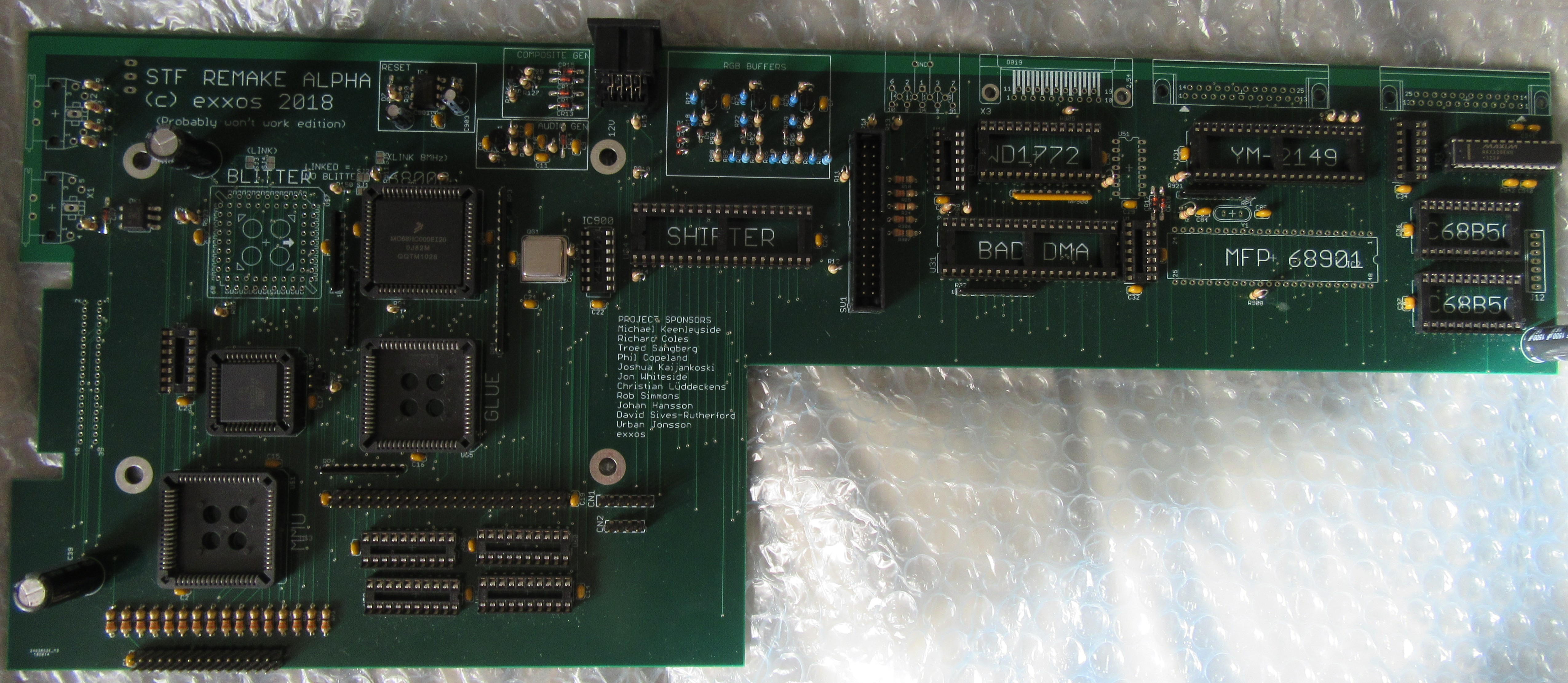

My board finally arrived just!

Now I need to start doing the modifications to it all.. Might take me a while

Will post progress as it happens, but trying find some time later today to make a start

[Icky]

Nice. Its taken a while but now the fun starts.

I see you still have a bit of soldering and desoldering (monitor socket) to do but the meat of the work has been done.

[PaulJ]

Very nice.. Is it lead or no lead?

[exxos]

Very nice.. Is it lead or no lead?

No idea assume lead I guess

[sandord]

Very nice.. Is it lead or no lead?

No idea assume lead I guess

I guess you could find out by licking. Lead is said to have an exquisite taste

[sandord]


Congratulations!

I can tell that the board was soldered with love, the components are placed really nicely.

[exxos]

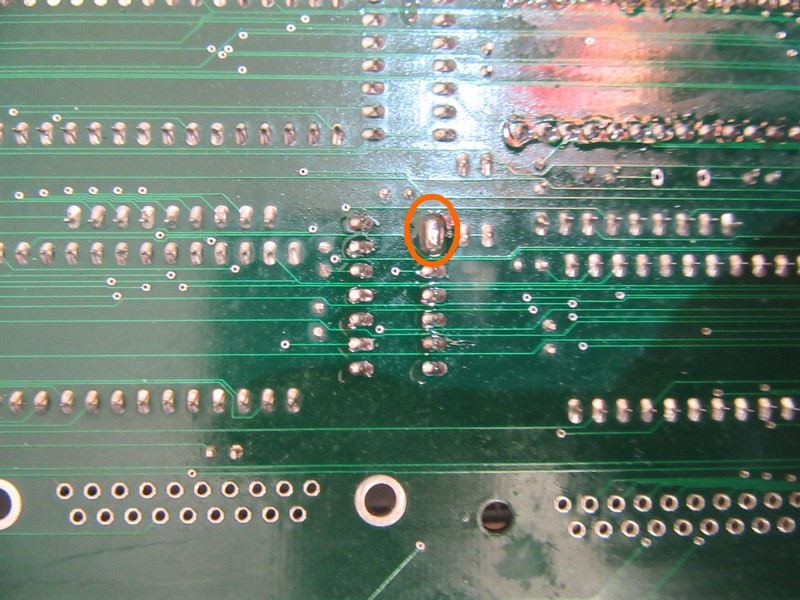

RESET FIX


[PhilC]

Finally,

great that you've got your hands on your baby finally.

[exxos]

HSYNC FIX



RESISTOR FIXES


I obviously cannot follow my own instructions, so I wired one of the pins to the extra resistor pack rather than the listing motherboard on...

But of course I did this to confuse people later


I have the blitter socket soldered in, and the missing MFP socket, I must've totally forgot to order ones of that size

[exxos]

Video socket out...


STOP!

HAMMER TIME!

Square pin round whole type problem here.. A lot of wiggling the pins to going place..


I had to put the middle row of pins from the top of the board does the black plastic part was in the way..



All done!


Now what is next.... Food time is next
