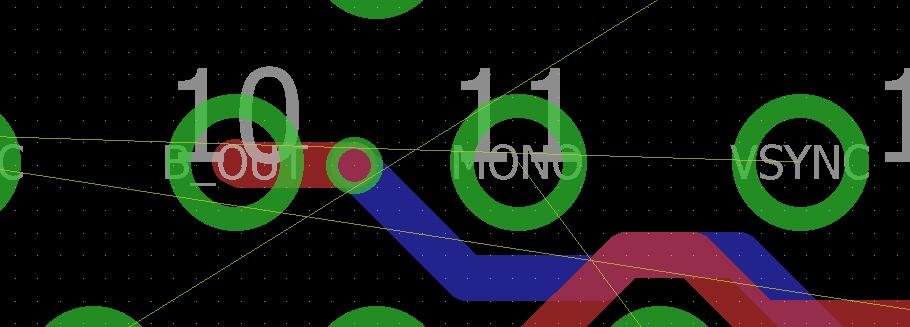

.. why the heck does it put a via right next to a though-hole part when it could just take the track right next to it


[exxos]

Made a fair bit of progress....


EDIT:

The SYNC protection diodes should be next to the monitor connector.. they are next to the DMA on the Alpha #brainturnedoff

[exxos]

This part about done


Onto the DMA area next...


[exxos]

Just doing a initial autoroute to see where the bottlenecks are with where I have placed components, this is by no means the final version, and is a long way off, I need to add the SIMM socket yet etc..


I am going to move the oscillator and buffer, more towards the back end of the shifter, where there is a bit more room, it should help with the routing around the CPU etc...

[exxos]

72pin simm added. I have left the Falcon board on there for the time being, it is always possible I have wired up the SIMM wrong, so always good to stick with what works for now The Falcon RAM board will probably be removed in the revision after this board..



[exxos]

Can'ya tell what it is yet....


[rubber_jonnie]

Can'ya tell what it is yet....

I'm guessing something to do with the 16Mhz mod for the STF remake?

[exxos]

I'm guessing something to do with the 16Mhz mod for the STF remake?

[exxos]

Autorouter working its magic....


[Icky]

Can'ya tell what it is yet....

I just received some board this morning to make a neater job of my diabolical wiring hack to get the 16MHz mod working.
